I present diffusion models as part of a family of machine learning techniques that withhold information from a model’s input and train it to guess the withheld information. I argue that diffusion's destroying approach to withholding is more flexible than typical hand-crafted information withholding techniques, providing a rich training playground that could be advantageous in some settings, notably data-scarce ones. I then address subtle issues that may arise when porting reinforcement learning techniques to the diffusion context, and wonder how such exploration problems could be addressed in more diffusion-native ways. I do not have definitive answers, but I do point my fingers in directions I deem interesting. A tutorial follows this thesis, expanding on the destroy-then-generate perspective. A novel kind of probabilistic graphical models is introduced to facilitate the tutorial's exposition.
Pourquoi faire simple quand on peut faire compliqué?
–French locution, usually ironic.
This blogpost is composed of two main sections, tied together by their unusual information-theoretic viewpoint. The Thesis is an opinion/perspective/speculative piece on diffusion models. The Tutorial is a diagrammatic presentation of diffusion models.
For diffusion experts. The Thesis is meant to stand alone, and it is where you will find the bulk of this blogpost’s novel ideas. Nonetheless, I encourage you to at least browse The Tutorial: it takes an unusual perspective that may interest you, and it introduces a new kind of probabilistic graphical model – which I propose to call generative commutative diagrams – that personally helped me wrap my head around numerous subtleties.
For non-experts. I encourage you to read through The Thesis in a cursory first-pass, just to absorb its general sense, then immediately proceed with The Tutorial. This should prepare you to circle back to The Thesis, this time paying more attention to passages that give you pause.
Finally, I wish to remind all readers that this blogpost contains speculations: I’ve taken special care toward clearly marking them as such, and I hope that this callout helps placing you in the right mindset.
Yang et al.[MASK] token in Mask Diffusion Language Models (MDLMs)
Data distribution. We have a training dataset sampled from a data distribution, and our goal is to generate new samples from the same data distribution. The only allowed “control mechanism” is conditioning.
Destroying process. We also have access to a procedure that can gradually destroy the information in data samples. This procedure may involve randomness. Like the training dataset, this procedure if fully specified a priori, before any training takes place.
Generative process. We train a generative process so that the samples it generates approximate the sought data distribution. This training leverages both the training dataset, which specifies what the generative process should ultimately generate, and the destroying process, which specifies how to chunk generation into manageable pieces.
Using this definition, diffusion models can be seen as a special case of the tried-and-true machine learning technique consisting of withholding some information from a model’s input, then training the model to generate the withheld information.
[MASK]ed tokens.You may notice a connection between the last two: that connection has already been made long ago.
In Diffusion Language Models are Super Data Learners, Ni et al.
when unique data is limited, diffusion language models (DLMs) consistently surpass autoregressive (AR) models by training for more epochs. The crossover shifts later with more or higher-quality data, earlier with larger models, and persists across dense and sparse architectures. We attribute the gains to three compounding factors: (1) any-order modeling, (2) super-dense compute from iterative bidirectional denoising, and (3) built-in Monte Carlo augmentation […]
Let’s speculate on the situation. We have devised simple (non-diffusion) ways to withhold information from our models, breaking the data into chunks that “make sense” to us, emphasizing aspects that must obviously be learned sooner or later. And when we train models to generate that withheld information, these simple approaches may turn out to be locally optimal for the sake of training as quickly as possible on humongous datasets. But when the fresh data gets scarce, when you have to train from the same sample for the $N^{\text{th}}$ time, perhaps more could be learned by considering a different viewpoint – like a diffusion model learning to predict tokens out-of-order. To be clear, ultimately, it could be that the diffusion model will perform better during inference when it is used to predict tokens in order, like an autoregressive model would simply do.
Depending on your perspective, this may align with Sutton’s The Bitter Lesson:
general methods that leverage computation are ultimately the most effective, and by a large margin. […] Seeking an improvement that makes a difference in the shorter term, researchers seek to leverage their human knowledge of the domain, but the only thing that matters in the long run is the leveraging of computation.
Left-to-right training may have been yet another human bias, a temporary fad, and in the long run perhaps we’ll just train in all-the-orders, leveraging much more compute. But there is a sweeter perspective on that bitter lesson: the design space for novel diffusion models is huge. To this day, very few destroying processes have been considered. For example, [MASK] is a great candidate for the next human fad/bias to be replaced by something that better leverages compute. Moreover, while diffusion may beat our vanilla information-withholding approaches in the bounded data regime, it hasn’t been shown to be the best way to proceed: diffusion itself may be a weird human fad.
This takes me to the last point of this blogpost’s thesis: if all incarnations of the tried-and-true “information withholding” machine learning technique can (and perhaps should) be related to diffusion, what other techniques are left? And could we improve upon diffusion by learning from them? The first answers that come to my mind are “anything that involves exploration,”
The archetypal technique involving exploration is Reinforcement Learning (RL). Whereas pure generative models solely learn from a training dataset – striving to generate new samples from the exact same data distribution – RL models strive for a different, “better” distribution. What is meant by “better” is usually (but not always) specified through a reward function: a function that assigns value (reward) to each possible data sample. We typically wish to maximize the expected reward, though there may be some requirement to not meander too far away from the original data distribution.
GRPO
Yet I suspect that this expectation-over-decoding-order strategy is inherently off-policy. Indeed, even for purely random decoding orders,
You may now think “Who are you to say how the model should or shouldn’t reason! Remember The Bitter Lesson!” Fair enough, but here’s my point: in the non-RL diffusion case, this expectation-over-decoding-order approach was grounded in sound theory, but we didn’t do our homework before porting it to RL. We can justify it by its good empirical results, but we lost our theoretical grounding. A priori, the only path we may reward on-policy for a given generated sample is the one that was followed by the model while generating that sample.
Ok, then how did we get that theoretical grounding in the non-RL case? Limiting ourselves to my strict definition at the beginning of this blogpost, we consider a specific data distribution and noising process, and there thus exists a single, ideal, typically untractable
Can we approach the RL problem with a diffusion model that satisfies this strict definition? Yes! By reframing it as conditioning,
More generally, notice how reframing as a conditioning problem removed “exploration” from the picture: we’re not searching for high-reward samples, we’re just filtering out from the original data distribution the samples that have low reward.
The astute readers may notice that we’ve been infringing on a second taboo of my strict definition: the destroying process is given (not learned!) before any training takes place, and it specifies what/how the model should learn. Again, there are workarounds: we may tweak how we sample the destruction process while maintaining the same nice, non-moving target.
Of course! For a start, we effectively move that target every time a researcher comes up with a different destroying process, and there is no good reason to believe that this human-in-the-loop algorithm has already found the optimum. We should learn the destroying process! The data should speak for itself! The compute should be leveraged! Umh, right… but how?
Let me start building toward an eventual solution path by formulating a version of this learn-the-destroying-process problem more explicitly.
First distribution. We have a data distribution from which we can get a training dataset.
Second distribution. We have a destroying process whose specifics depends on parameters to be determined. However, whatever these parameters are, we already know what the probability distribution for a “fully destroyed” data distribution should look like.
Cost function. For given parameters of the destroying process, we train a diffusion model to generate from the data distribution. We are given a function that associates a cost to these parameters: the cost may depend on the ultimate performances of the model when transporting from the fully-destroyed distribution to the data distribution, but also on the model’s size and the resources it consumed at training and/or inference. We seek to minimize the expectation of this cost.
In the special case where the “destroying process” is constrained to be a bijection (so it does not destroy information, it is just a reversible mangling
Imagine a pile of dirt whose height profile represents a probability distribution (higher probability means more dirt piled up there). We want to move the dirt around so that it represents a second distribution instead. There are many ways to do so, many exact plans for where to pick each shovelful of dirt and where to toss them. We can assign a cost
Now the requirement that no information is destroyed amounts to demanding a plan that is perfectly specified, perfectly invertible, and perfectly executed on, down to the very grain of sand. In the more general case where the destroying process may actually destroy information, we have an entropy-regularized OT problem
Back to the point, our learn-the-destroying-process problem can thus be connected to entropy-regularized OT if we allow the cost function to depend on implementation-specific metrics during training and/or inference (e.g., model performances and resource consumption). Is there anything practical to gain by framing the search for the best destroying process in such terms? Well, I don’t know. Again, I think that the fact we can suffices to justify some exploratory efforts.
So destruction is a general strategy for learning to generate information about a data distribution, diffusion’s messiness richness may advantageously leverage destruction in some contexts (including data-starved ones), exploring how to optimize a function doesn’t neatly fit this pictures, but there are workarounds reconciliating diffusion and exploration, opening a multitude of avenues for future work. There are no promises, but I think that we should give it a try.
This section provides a diagrammatic introduction to “destroying” and “generating” information.
As is tradition in information theory, we consider two characters, Alice and Bob. Alice communicates one of 3 messages to Bob through a communication channel. A big arrow indicates the name of the channel itself, Identity, while smaller arrows indicate the action of that channel.
flowchart LR
subgraph A
a0[0]
a1[1]
a2[2]
end
subgraph B
b0[0]
b1[1]
b2[2]
end
a0 --> b0
a1 --> b1
a2 --> b2
A ==Identity==> B
LeftMarginHack:::phantom ~~~ a0
b0 ~~~ RightMarginHack:::phantom
classDef phantom display: none;

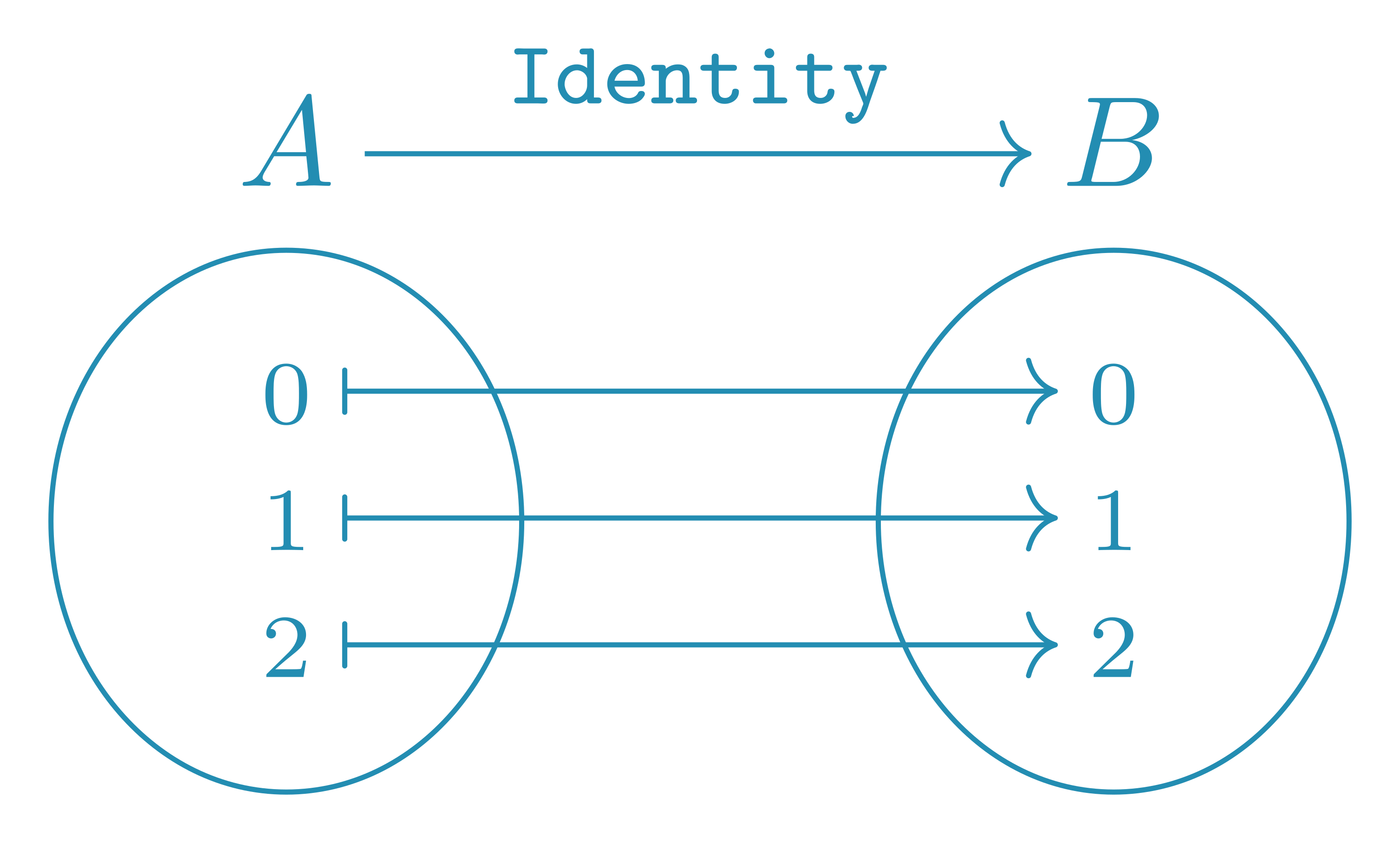

In the above situation, Bob gets exactly the message that Alice tried to convey. The information communicated by Alice is thus preserved (i.e., neither created nor destroyed) by the Identity communication channel: it is an important (albeit boring) channel.

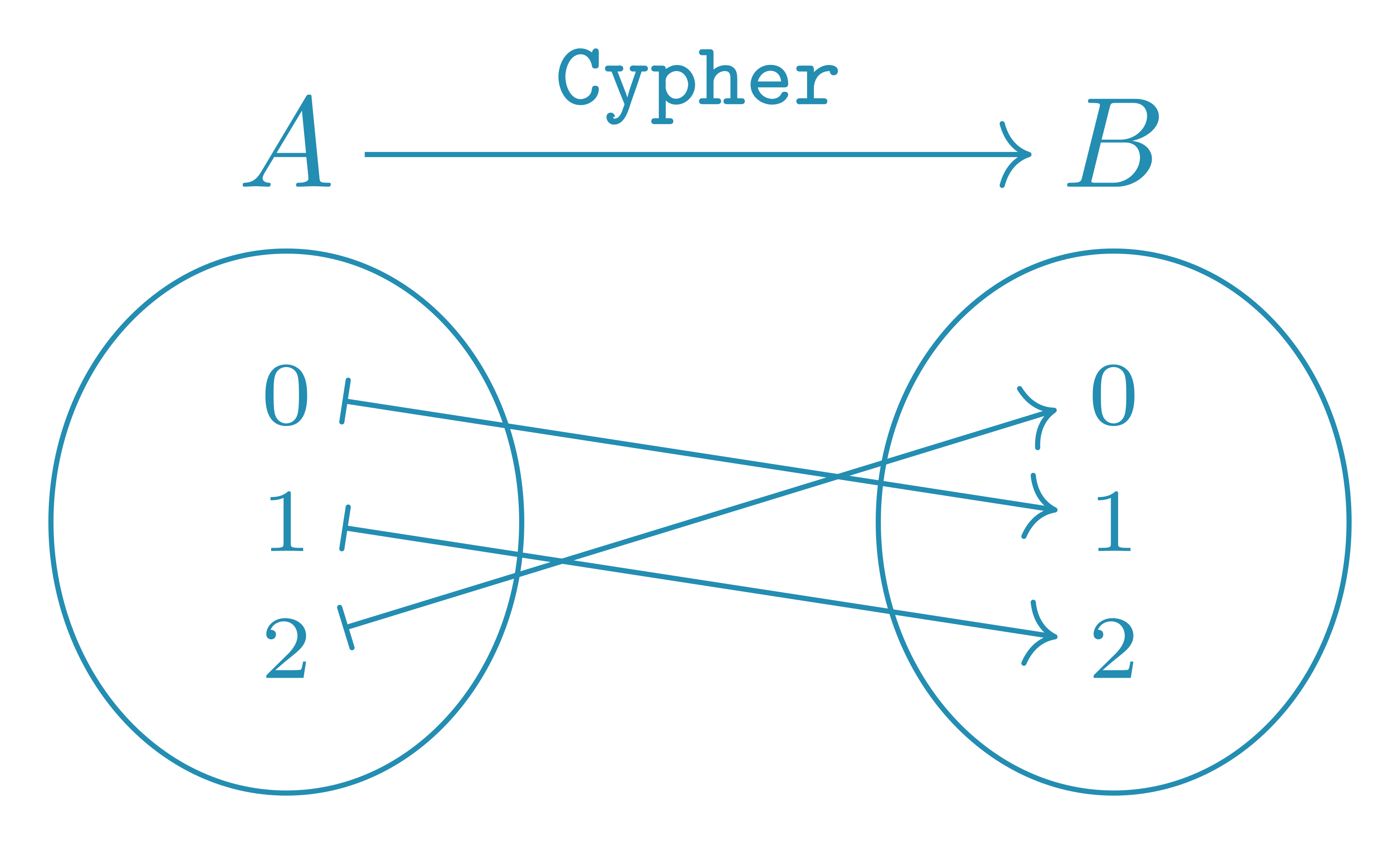

Ok, now let’s try a different channel, which I’ll call Cypher.
flowchart LR
subgraph A
a0[0]
a1[1]
a2[2]
end
subgraph B
b1[1]
b2[2]
b0[0]
end
a0 --> b1
a1 --> b2
a2 --> b0
A ==Cypher==> B
LeftMarginHack:::phantom ~~~ a0
b0 ~~~ RightMarginHack:::phantom
classDef phantom display: none;
Here Bob gets a different number than the one Alice intended to send. Does this mean that Cypher destroys information? Well, it would if the channel could only be used once before being discarded…
But for the sake of this blogpost, let’s instead consider the case where Bob is allowed as many training examples as he needs. During that training, Bob gets Alice’s message through both the trusty Identity channel and the to-be-figured-out Cypher channel. Using pairs of the form $(a,b)$ (with $a \in A$ and $b \in B$), Bob’s observations may look like
There are many kinds of things that Bob could learn from such data. First, he may hypothesize that Alice is more likely to give the message $0$ than she is to say $1$ or $2$. In doing so, Bob would be building a mental model of an Imaginary-Alice $A’$, i.e., trying to learn the probability distribution $\textup{P}^\theta(A’)$ so that it matches the real $\textup{P}(A)$. And ultimately, this is exactly what generative modeling is about: learn how to sample from a $\textup{P}^\theta(A’)$ that approximates as best as we can the data distribution $\textup{P}(A)$.
Doing so may be realistic for $3$ messages, but what if Alice had more range, say, $10^{678000}$ possible unique messages?
So, Bob should focus on figuring out the Cypher channel, i.e., learn a probability distribution $\textup{P}^{\theta}(A \vert B)$ that approximates $\textup{P}(A \vert B)$.
flowchart LR
subgraph A
a0[0]
a1[1]
a2[2]
end
subgraph B
b1[1]
b2[2]
b0[0]
end
subgraph Ap["A'"]
ap0[0]
ap1[1]
ap2[2]
end
a0 --> b1 --> ap0
a1 --> b2 --> ap1
a2 --> b0 --> ap2
A ==Cypher==> B
B ==Decrypt==> Ap
A ==Identity==> Ap
LeftMarginHack:::phantom ~~~ a0
ap0 ~~~ RightMarginHack:::phantom
classDef phantom display: none;

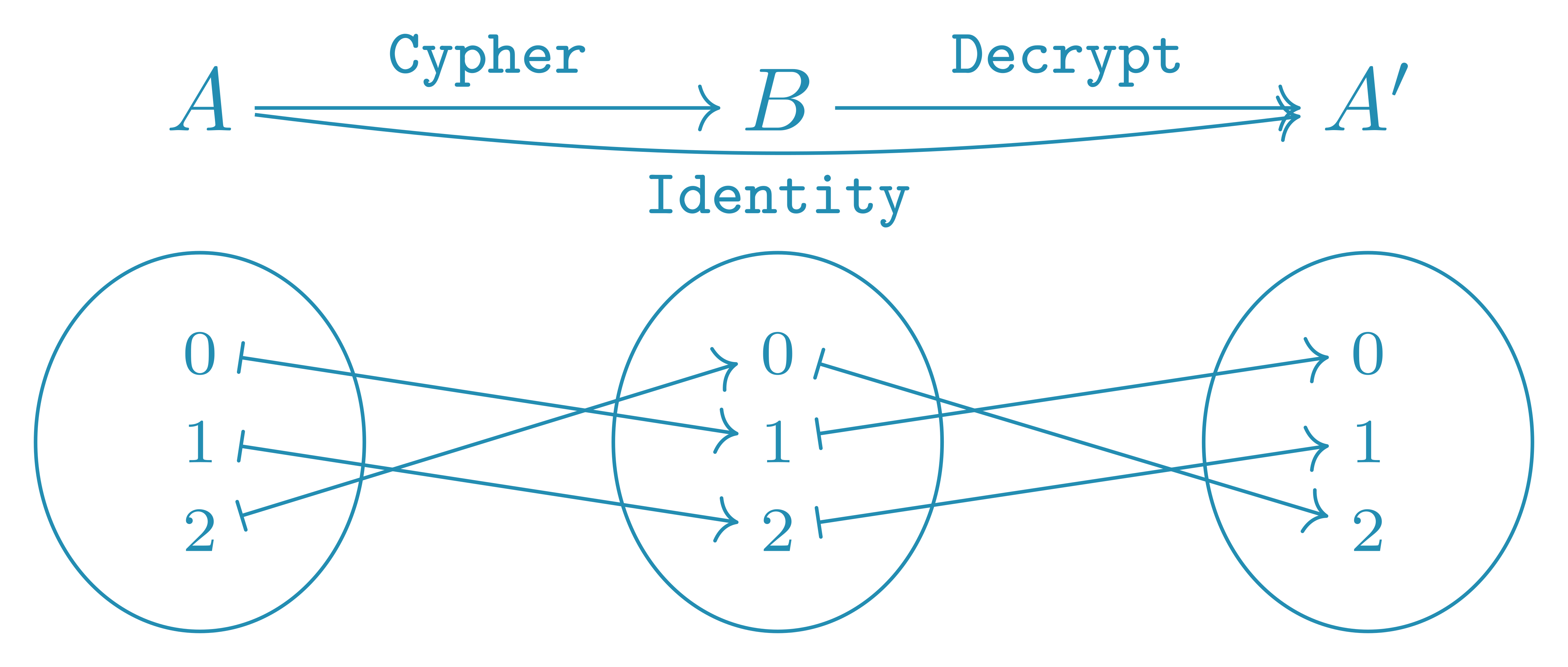

There exists a Decrypt channel that, applied on the output of the Cypher, gives the Identity. If Bob is a good Bayesian, he will never be absolutely sure that he figured it out, but whatever his priors wereCypher channel was sampled, there is a point at which Decrypt will become his leading hypothesis as to what $\textup{P}^\theta(A’ \vert B)$ should be. And from that point on, his confidence in that hypothesis will keep increasing as more data is gathered.
The existence of a Decrypt that reverses the action of Cypher proves that Cypher does not destroy information. And because we could do the opposite, i.e., reverse the action of Decrypt by applying Cypher, we know that Cypher does not generate information either. Just like Identity, Cypher preserves information. What does this mean? It means that Cypher is a useless channel for our divide-and-conquer aims: learning a $\textup{P}^\theta(B’)$ that approaches $\textup{P}(B)$ is as hard as learning a $\textup{P}^\theta(A’)$ that approaches $\textup{P}^\theta(A)$.

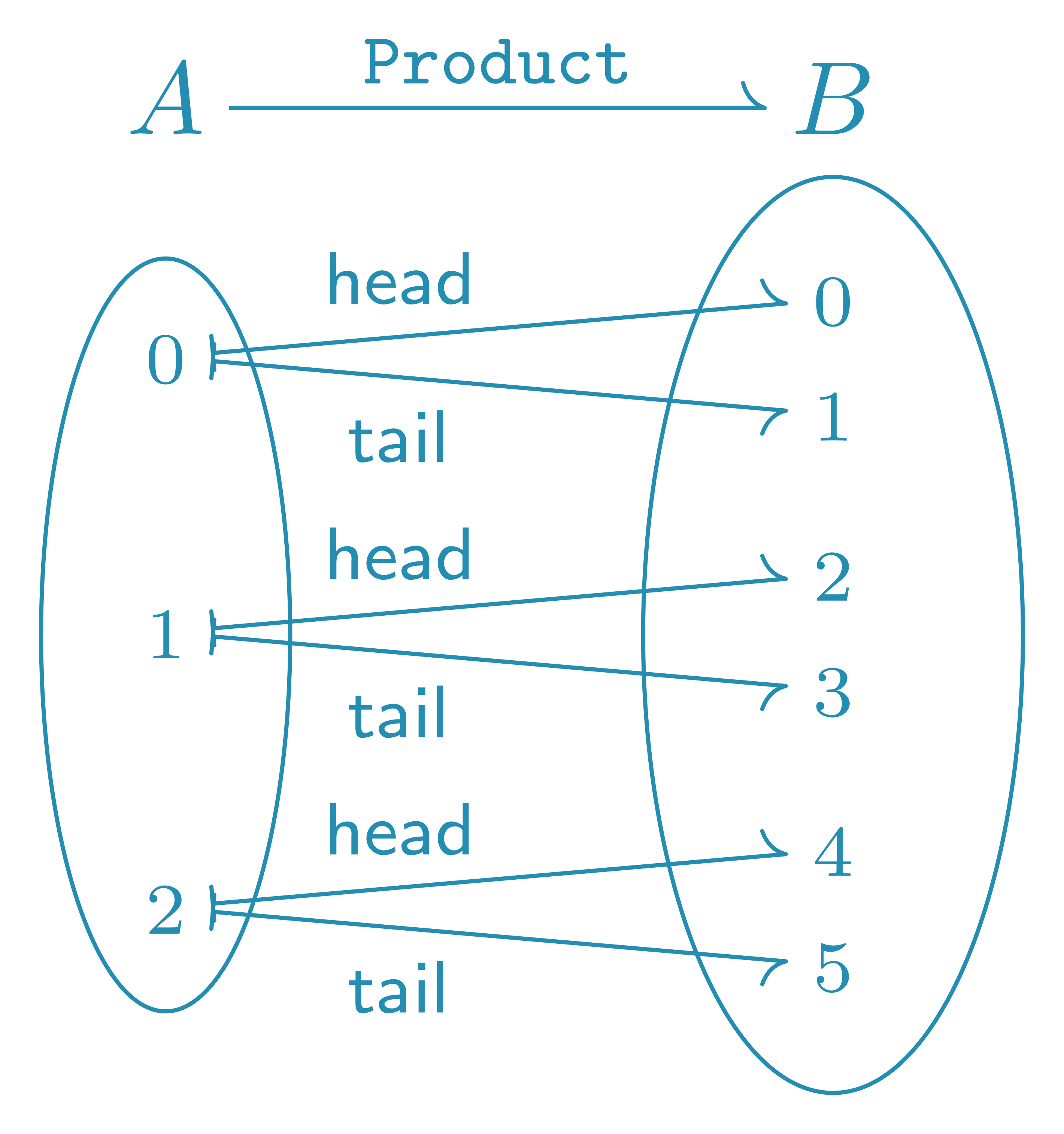

Ok, maybe what we need is a noisy channel?
flowchart LR
subgraph A
a0[0]
a1[1]
a2[2]
end
subgraph B
b0[0]
b1[1]
b2[2]
b3[3]
b4[4]
b5[5]
end
a0 --head--> b0
a0 --tail--> b3
a1 --head--> b1
a1 --tail--> b4
a2 --head--> b2
a2 --tail--> b5
A ==Product==> B
LeftMarginHack:::phantom ~~~ a0
b0 ~~~ RightMarginHack:::phantom
classDef phantom display: none;

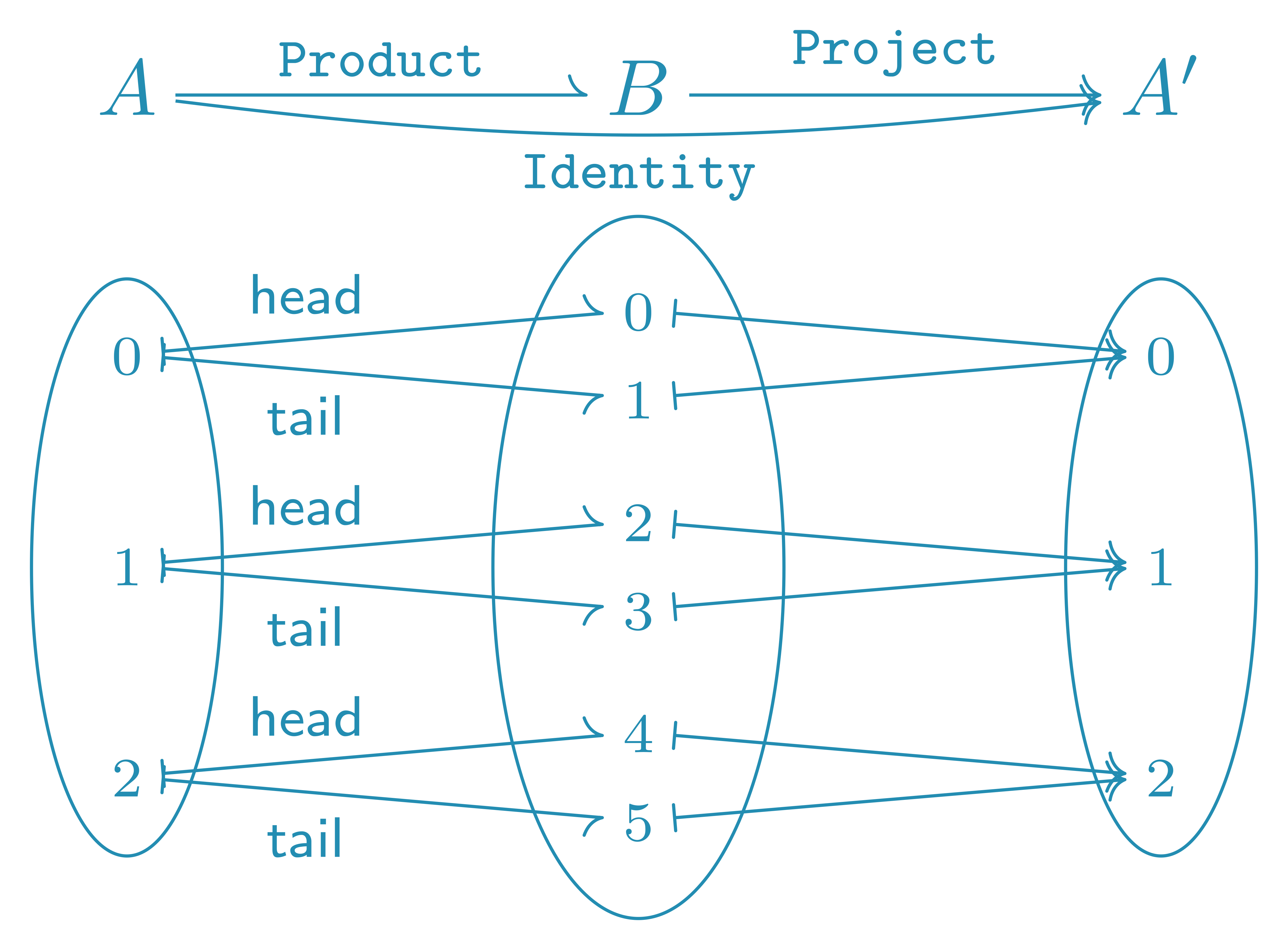

Here the ProductProduct destroy information?
flowchart LR
subgraph A
a0[0]
a1[1]
a2[2]
end
subgraph B
b0[0]
b1[1]
b2[2]
b3[3]
b4[4]
b5[5]
end
subgraph Ap["A'"]
ap0[0]
ap1[1]
ap2[2]
end
a0 --head--> b0 --> ap0
a0 --tail--> b3 --> ap0
a1 --head--> b1 --> ap1
a1 --tail--> b4 --> ap1
a2 --head--> b2 --> ap2
a2 --tail--> b5 --> ap2
A ==Product==> B ==Project==> Ap
A ==Identity==> Ap
LeftMarginHack:::phantom ~~~ a0
ap0 ~~~ RightMarginHack:::phantom
classDef phantom display: none;
No: there exists a Project channel that undoes the action of Product. Does it generate information?

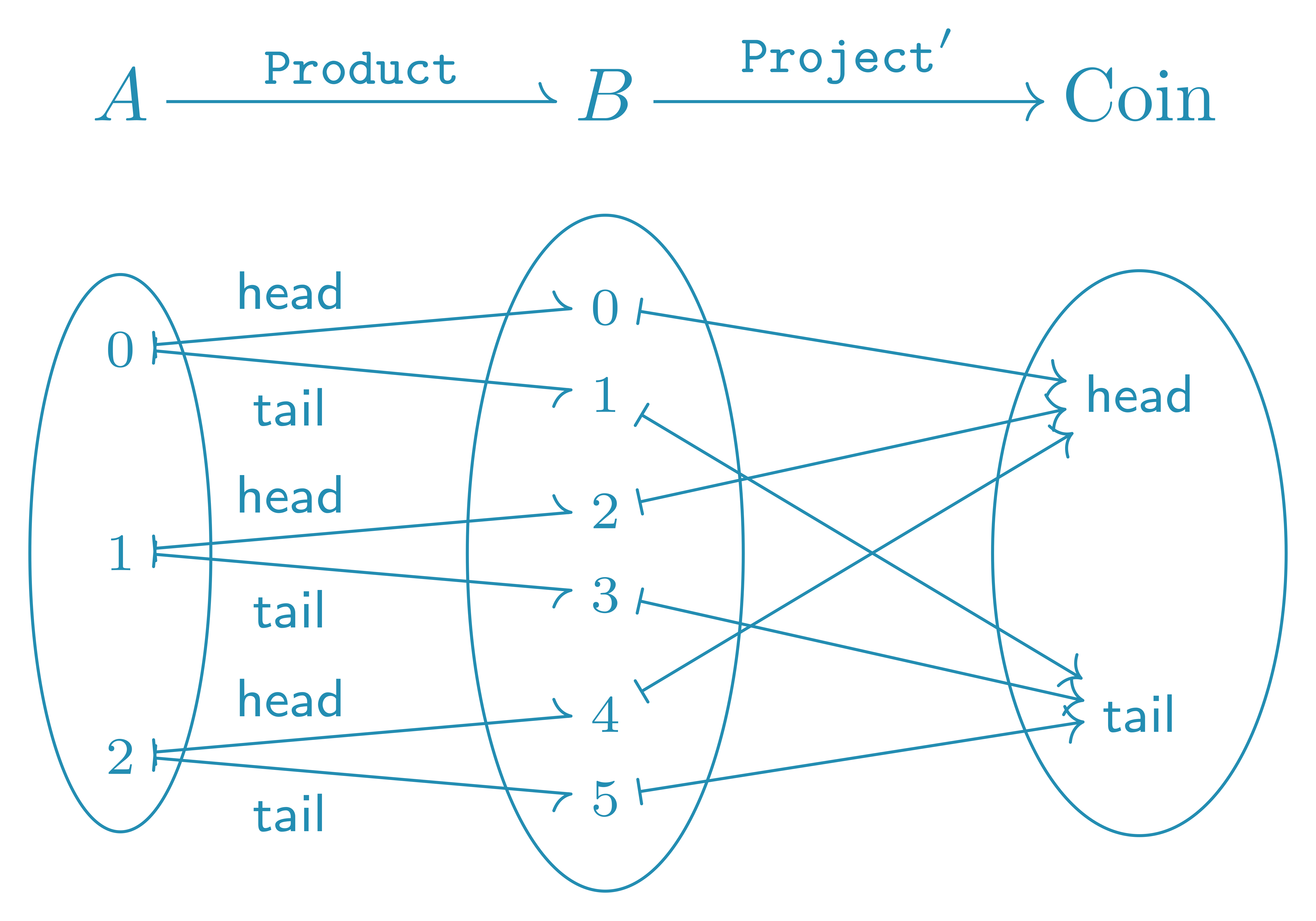

flowchart LR
subgraph A
a0[0]
a1[1]
a2[2]
end
subgraph B
b0[0]
b3[3]
b1[1]
b4[4]
b2[2]
b5[5]
end
subgraph Coin
head
tail
end
a0 --head--> b0 --> head
a0 --tail--> b3 --> tail
a1 --head--> b1 --> head
a1 --tail--> b4 --> tail
a2 --head--> b2 --> head
a2 --tail--> b5 --> tail
A ==Product==> B ==Project'==> Coin
LeftMarginHack:::phantom ~~~ a0
head ~~~ RightMarginHack:::phantom
classDef phantom display: none;
Yes! Bob could use Project' to learn the outcome of the coin flip, an information that Alice is completely unaware of!
For our divide-and-conquer aims, we needed Bob to be easier to model than Alice, and we got the opposite: Bob is strictly harder to model than Alice because he has all of Alice’s information, plus some irrelevant information about a coin. Therefore, Product is an even worse channel than Cypher for this divide-and-conquer purpose.
If noise isn’t what we need, what is it?
flowchart LR
subgraph A
a0[0]
a1[1]
a2[2]
end
subgraph B
b0[0]
b1[1]
end
a0 --> b0
a1 --> b1
a2 --> b1
A ==Mash==> B
LeftMarginHack:::phantom ~~~ a0
b0 ~~~ RightMarginHack:::phantom
classDef phantom display: none;

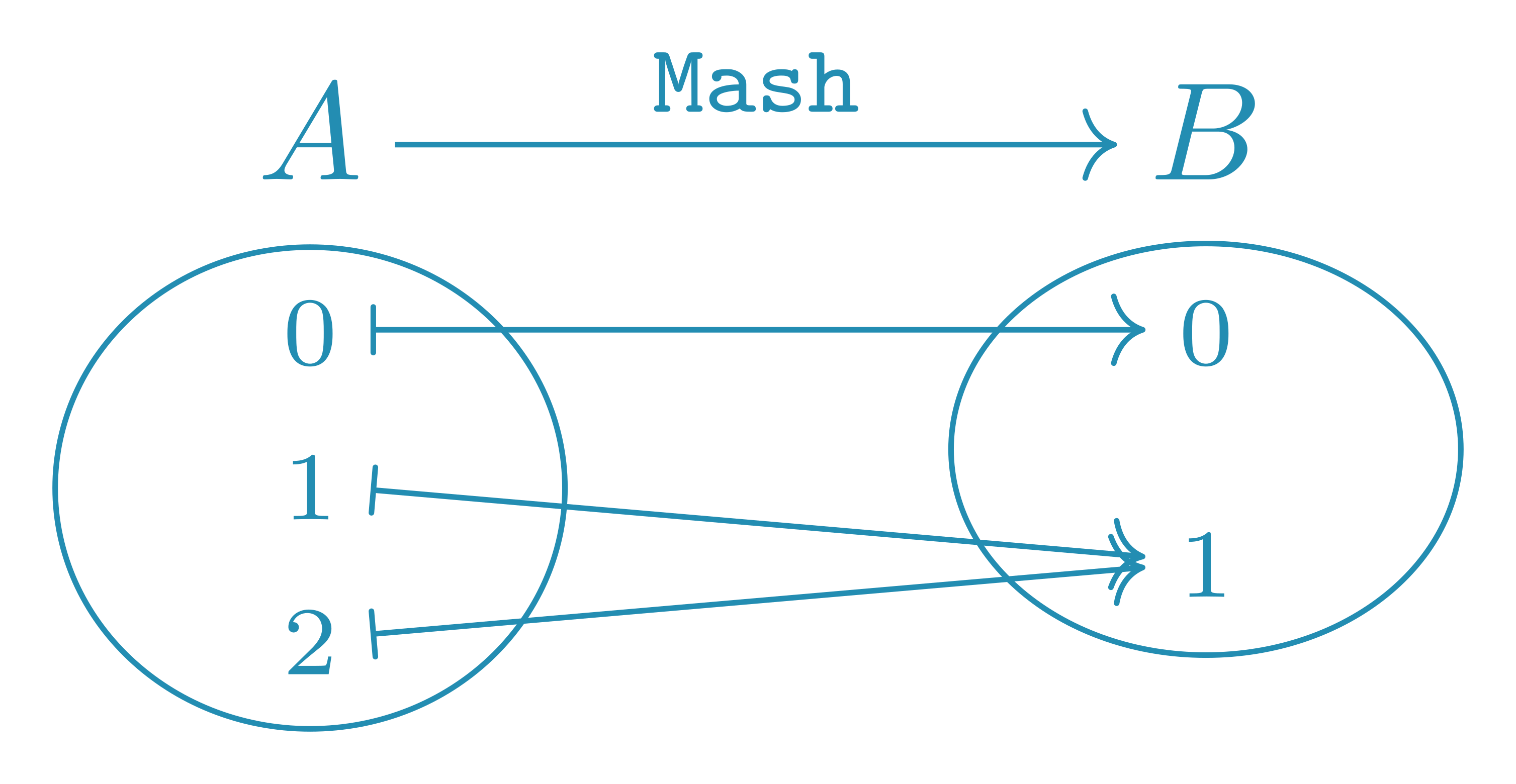

That’s it! When Bob gets the message $1$, he can’t tell with certainty whether Alice said $1$ or $2$. Mashing different messages together is what destroys information, not noise.
flowchart LR
subgraph A
a0[0]
a1[1]
a2[2]
end
subgraph B
b0[0]
b1[1]
end
subgraph Ap["A'"]
ap0[0]
ap1[1]
ap2[2]
end
a0 --> b0 --> ap0
a2 --> b1 --> ap1
a1 --> b1 --> ap2
A ==Mash==> B ==Guess==> Ap
A -.B.- Ap
LeftMarginHack:::phantom ~~~ a0
ap0 ~~~ RightMarginHack:::phantom
classDef phantom display: none;

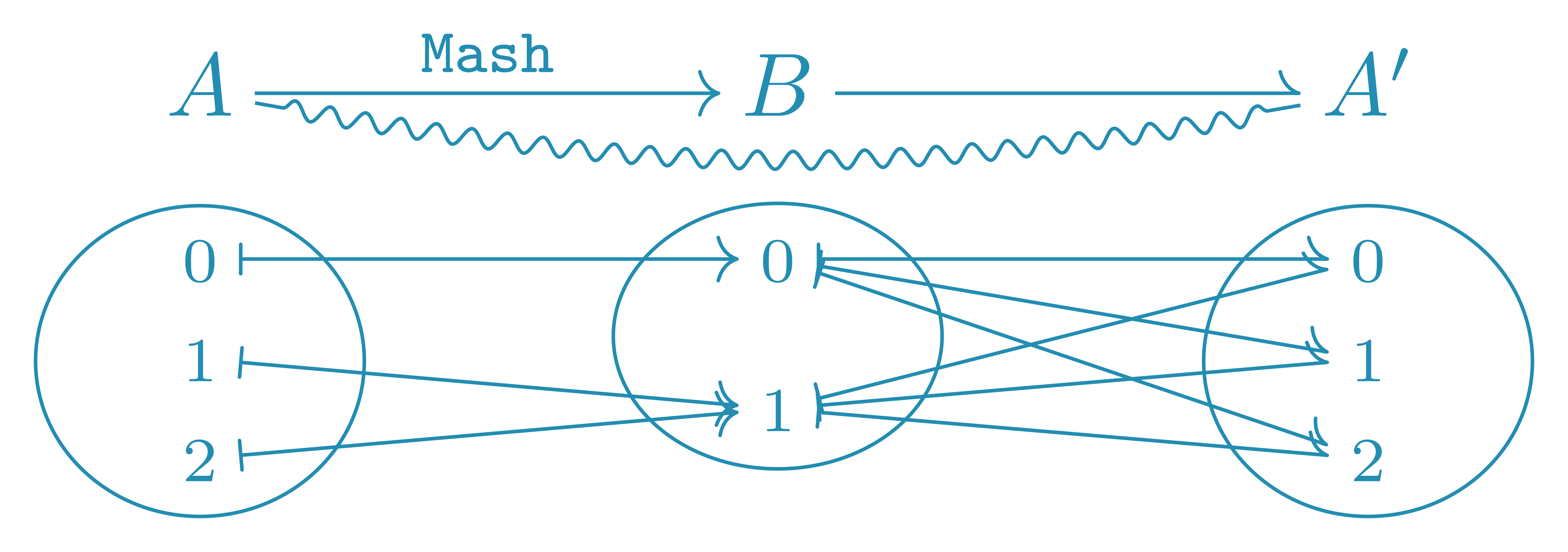

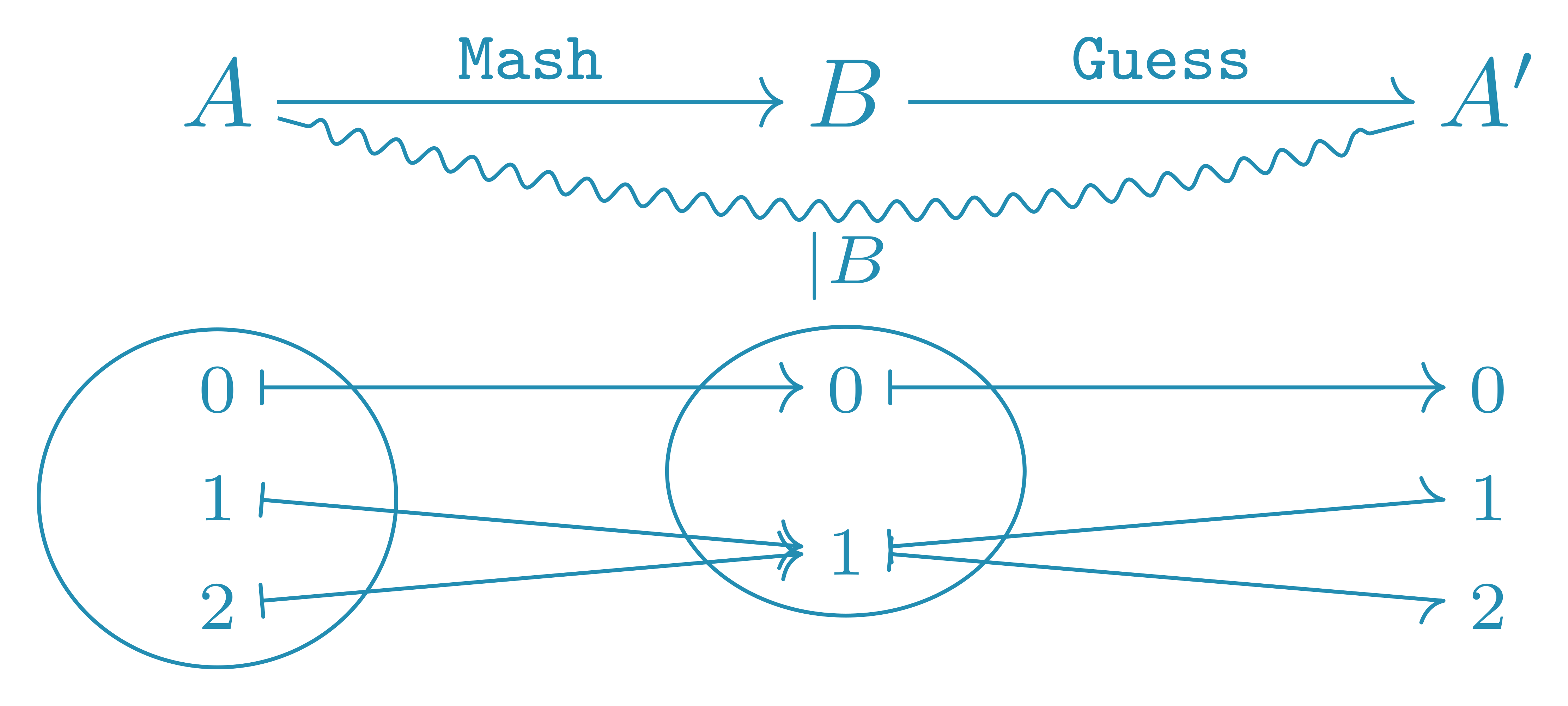

When Bob gets the message $B=0$, he can simply assign $A’=0$. But when $B=1$, he must learn to Guess the message sent by an Imaginary-Alice $A’$ so that $\textup{P}^\theta(A’|B)$ is as close as possible to $\textup{P}(A|B)$.
I indicate this last requirement using a dashed line, with the conditional $B$ added on the line. However, in many applications, we don’t have a particular desire for $\textup{P}^\theta(A’|B) = \textup{P}(A|B)$, and we could be perfectly content with any $\textup{P}^\theta(A’|B)$ such that $\textup{P}^\theta(A’) = \textup{P}(A)$. In those cases, I simply don’t write anything on the dashed line.
flowchart LR
subgraph A
a0[0]
a1[1]
a2[2]
end
subgraph B
b0[0]
b1[1]
end
subgraph Ap["A'"]
ap0[0]
ap1[1]
ap2[2]
end
a0 --> b0 --> ap0
a2 --> b1 --> ap0
a1 --> b1
b0 --> ap1
b1 --> ap1
b0 --> ap2
b1 --> ap2
A -.- Ap
A ==Mash==> B ==> Ap
LeftMarginHack:::phantom ~~~ a0
ap0 ~~~ RightMarginHack:::phantom
classDef phantom display: none;
Note that I didn’t name the arrow from Bob to the Imaginary-Alice, because I don’t really care how Bob does it: as long as $\textup{P}^\theta(A’) = \textup{P}(A)$, i.e., the two people joined by an un-decorated dashed line have the same marginal distribution, we’re good.

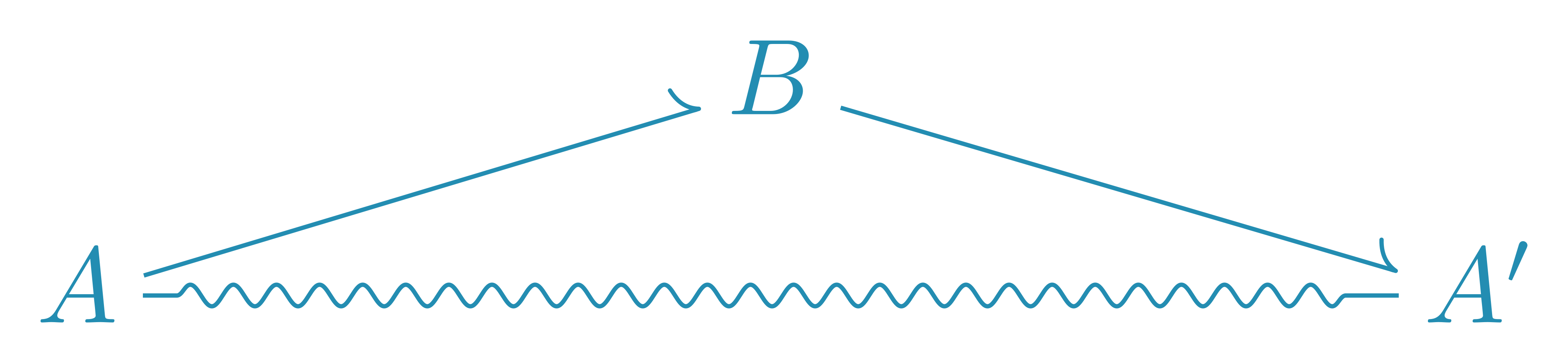

And I may not even care about the details of the possible messages and how they relate (small arrows).
flowchart LR
subgraph A
a0:::phantom
end
subgraph B
b0:::phantom
end
subgraph Ap["A'"]
ap0:::phantom
end
A ==> B ==> Ap
A -.- Ap
LeftMarginHack:::phantom ~~~ A
Ap ~~~ RightMarginHack:::phantom
classDef phantom display: none;
What does this picture tell us? Well, for a starter, because $A$ and $A’$ have the same marginal probability distribution, they must have the same information content (entropy)
\[\textup{H}(A) = \textup{H}(A') .\]How does $\textup{H}(B)$ relate to those two? We don’t know: it could be higher, lower, or equal, depending on the details of those communication channels. One thing is clear though: as much information must be created/destroyed from $A$ to $B$ as is destroyed/created from $B$ to $A’$.

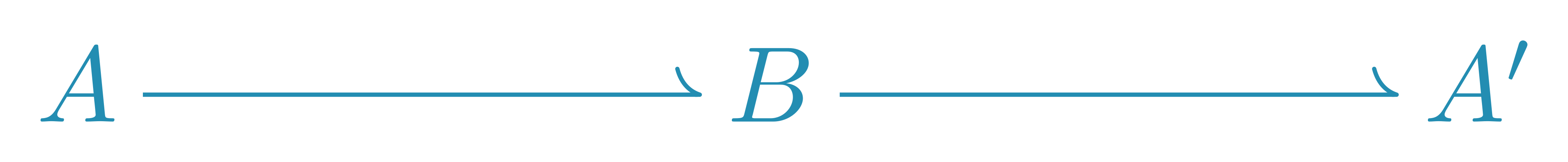

This picture can tell us much more than that, because of the data processing inequality. From Latham and Roudi

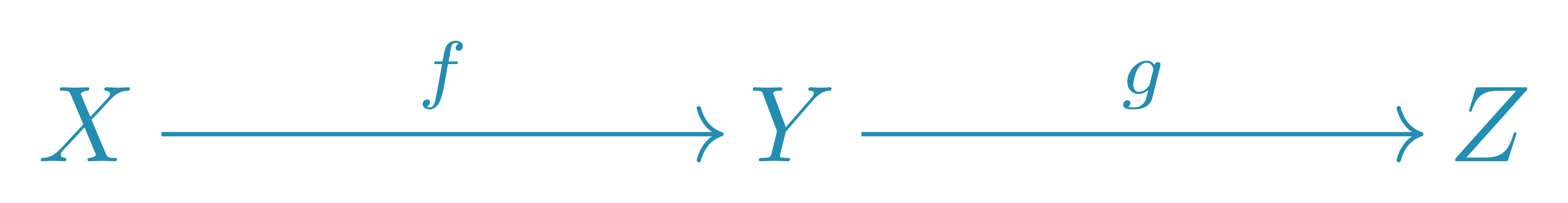

The Data Processing Inequality (DPI) states, loosely, that post-processing cannot increase information.
If you think “Haven’t we just shown that communication channels may create information?!”, then yes, you are correct. But the information created by communication channels is completely irrelevant to anything that came before in the communication chain. Latham and Roudi are saying that information about an early message cannot appear in later messages by further processing. This “information about” can be measured with the mutual information; we write $\textup{I}(Y; X)$ the mutual information between $X$ and $Y$, and it satisfies
\[\textup{I}(Y; X) = \textup{H}(Y) - \textup{H}(X | Y) = \textup{H}(X) - \textup{H}(Y | X) , \qquad \textup{I}(Y; Y) = \textup{H}(Y) .\]flowchart LR
subgraph A
a0:::phantom
end
subgraph B
b0:::phantom
end
subgraph Ap["A'"]
ap0:::phantom
end
A ==> B ==> Ap
LeftMarginHack:::phantom ~~~ A
Ap ~~~ RightMarginHack:::phantom
classDef phantom display: none;
Therefore, what the data processing inequality tells us is that
\[\eqalign{ \textup{I}(A; A) \ge \textup{I}(A; B) & \ge \textup{I}(A; A') \cr \textup{I}(B; B) & \ge \textup{I}(B; A') . }\]Whatever there is to know about $A$, $B$ cannot know more than that, and $A’$ cannot know more than $B$ did. And $A’$ cannot know more about $B$ than $B$ knew about himself.
This is what I call “the destruction story”: you cannot know what has been forgotten before you heard about it. However, the data processing inequality has a lesser known dual, which I call “the generation story”
\[\eqalign{ \textup{I}(A'; A) & \le \textup{I}(A'; B) \le \textup{I}(A'; A') \cr \textup{I}(B; A) & \le \textup{I}(B; B) . }\]$A$ cannot know more than $B$ about $A’$, and $B$ cannot know more about $A’$ than there is to be known about $A’$. And $A$ cannot know more than $B$ about $B$. In the generation story, you cannot know about what has not been decided yet.

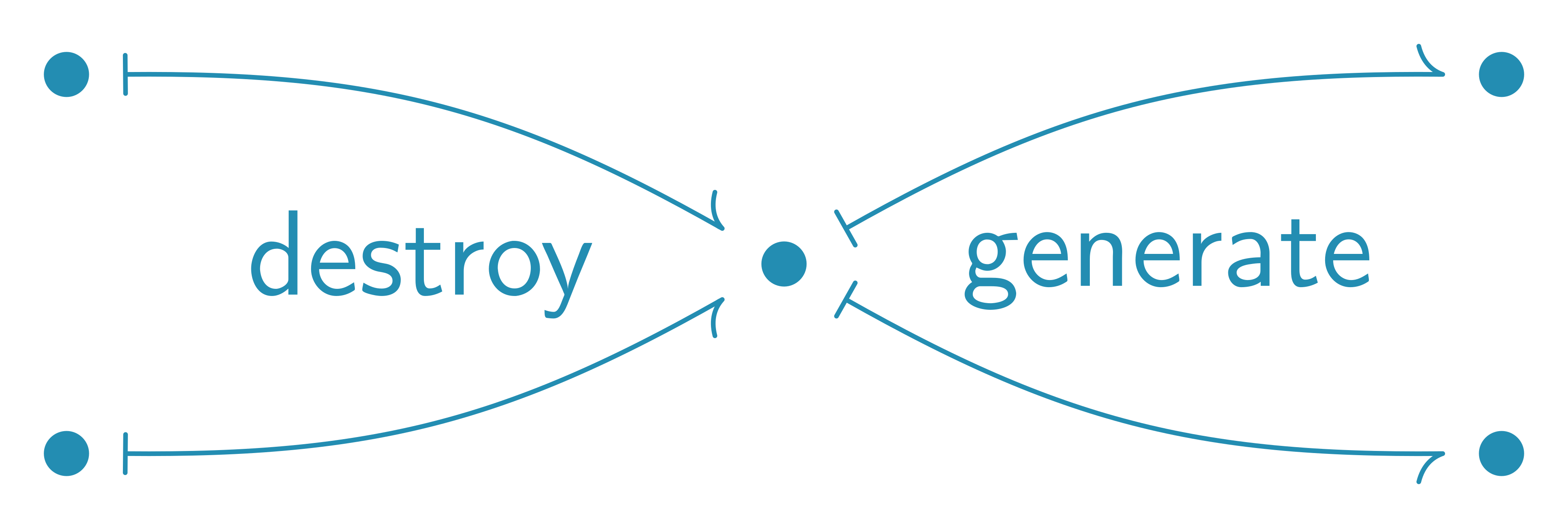

These zoomed-out diagrams are a great way to consider general classes of problems. But ultimately, the generation/destruction of information happens at the zoomed-in, message level.
flowchart LR
focus[" "]
leftt[" "] --> focus --> rightt[" "]
leftc:::phantom ~~~|"destroy"| focus ~~~|"generate"| rightc:::phantom
leftb[" "] --> focus --> rightb[" "]
LeftMarginHack:::phantom ~~~ leftt
rightb ~~~ RightMarginHack:::phantom
classDef phantom display: none;

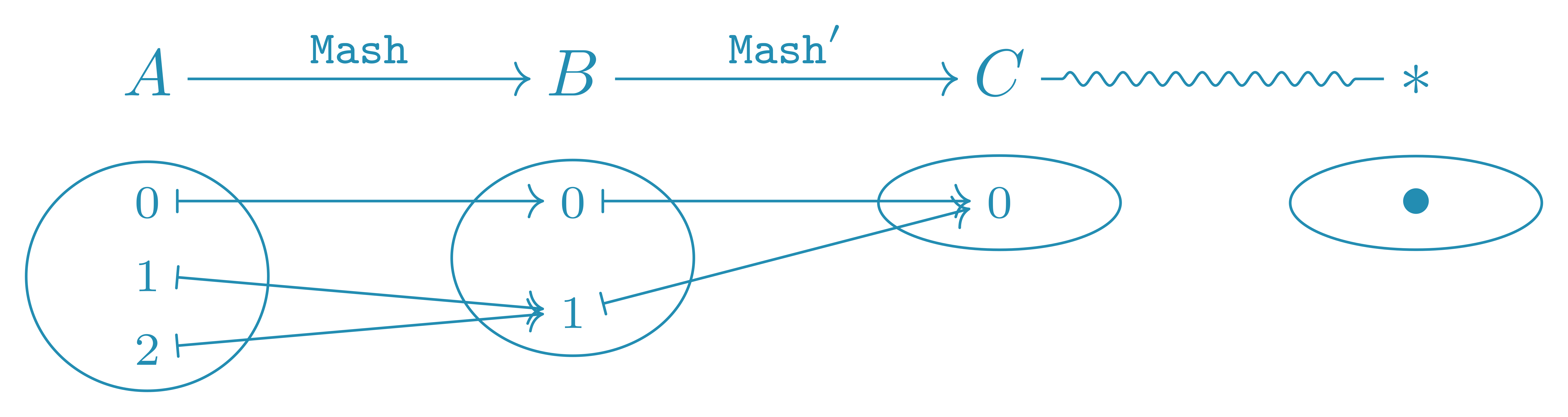

Let’s continue from the Mash example in the previous section. Now suppose that Bob passes the message to Carol through the Mash' channel.
flowchart LR
subgraph A
a0[0]
a1[1]
a2[2]
end
subgraph B
b0[0]
b1[1]
end
subgraph C
c0[0]
end
subgraph Singleton[*]
singleton[" "]
end
a0 --> b0 --> c0
a1 --> b1 --> c0
a2 --> b1
A ==Mash==> B ==Mash'==> C -.- Singleton
LeftMarginHack:::phantom ~~~ a0
singleton ~~~ RightMarginHack:::phantom
classDef phantom display: none;
Notice that Carol always gets the same message, which is called a singleton: I highlight this by linking her to a special “*” symbol using a dashed line. All singleton have no information: $\textup{H}(C) = 0$.
But by the definition of mutual information, we must have $\textup{I}(A; C) \le \textup{H}(C) = 0$: Carol cannot know more about Alice than Carol knows at all, but Carol knows nothing, therefore Carol knows nothing about Alice. Stated otherwise, all information about Alice has been destroyed by the time the messages get to Carol. Success! We have divided a large task into smaller, simpler ones, until all that was left was trivial!

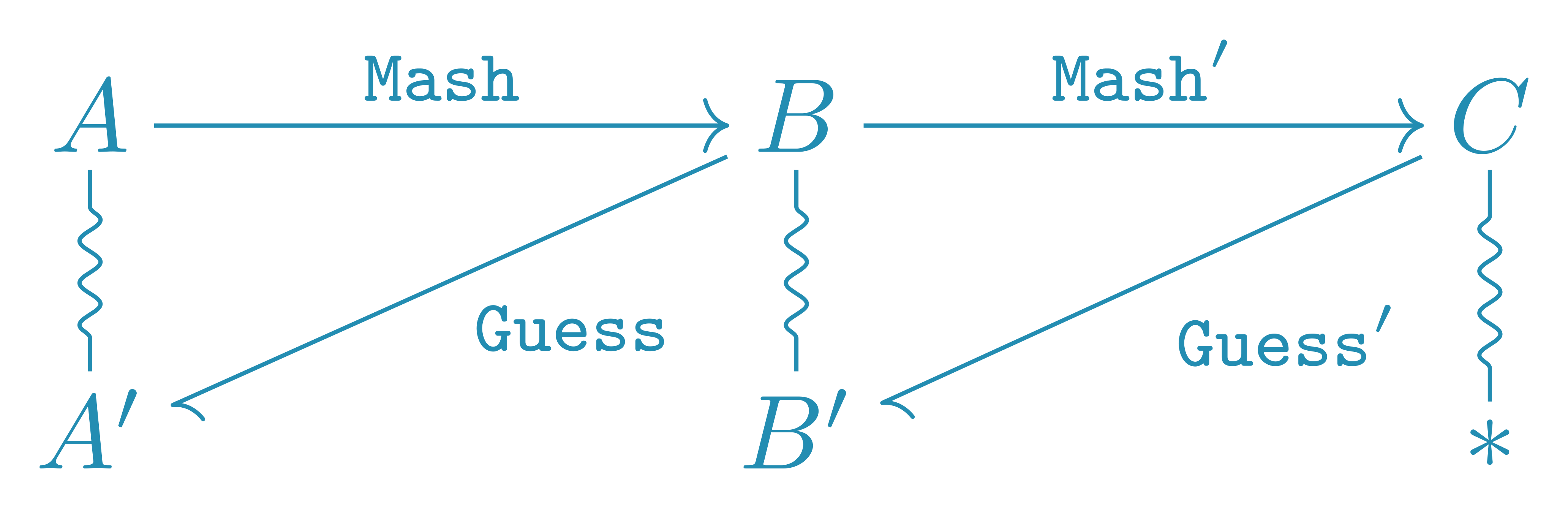

Now unto the “conquer” part of divide-and-conquer.
flowchart LR
subgraph A
a0:::phantom
end
subgraph B
b0:::phantom
end
subgraph Ap["A'"]
ap0:::phantom
end
subgraph C
c0:::phantom
end
subgraph Bp["B'"]
bp0:::phantom
end
subgraph Singleton["*"]
singleton:::phantom
end
A ==Mash==> B ==Mash'==> C ==Guess'==> Bp
B ==Guess==> Ap
A -.- Ap
B -.- Bp
C -.- Singleton
LeftMarginHack:::phantom ~~~ a0
bp0 ~~~ RightMarginHack:::phantom
classDef phantom display: none;

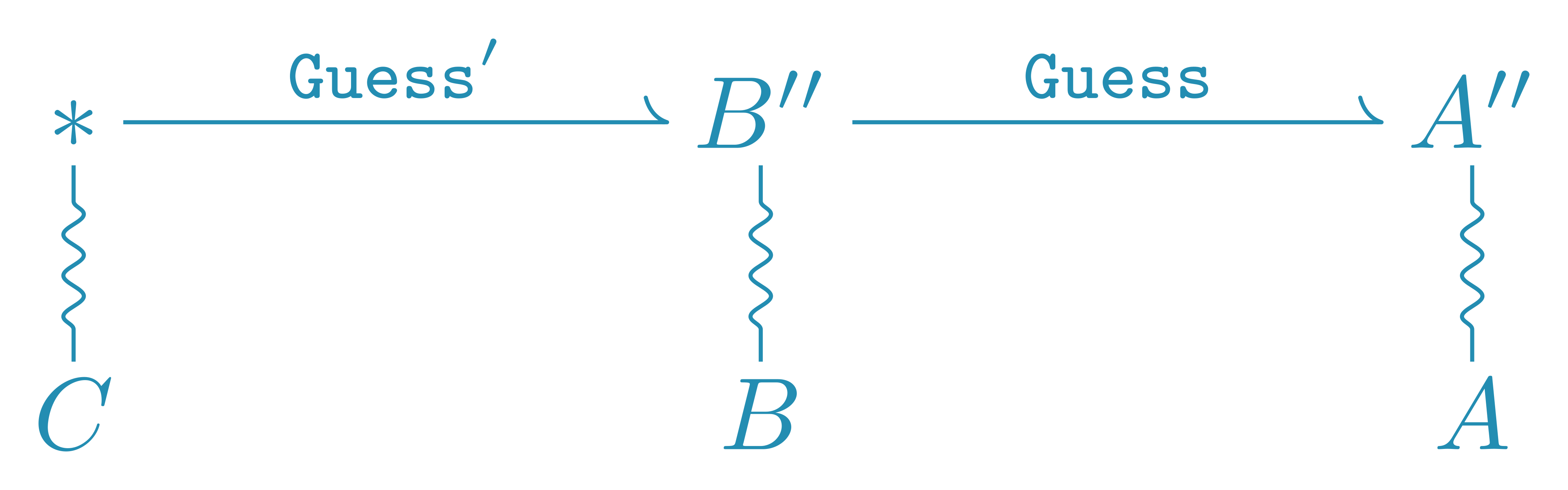

Bob can learn Guess using Mash on Alice’s message, and Carol can learn Guess' using Mash' on Bob’s. And because Carol knows nothing, we’re ready to generate completely fake $A’’$ behavior from nothing!
flowchart LR
subgraph Singleton["*"]
singleton:::phantom
end
subgraph Bpp["B''"]
bpp0:::phantom
end
subgraph App["A''"]
app0:::phantom
end
subgraph A["A"]
a0:::phantom
end
Singleton =="Guess'"==> Bpp ==Guess==> App -.- A
LeftMarginHack:::phantom ~~~ Singleton
a0 ~~~ RightMarginHack:::phantom
classDef phantom display: none;

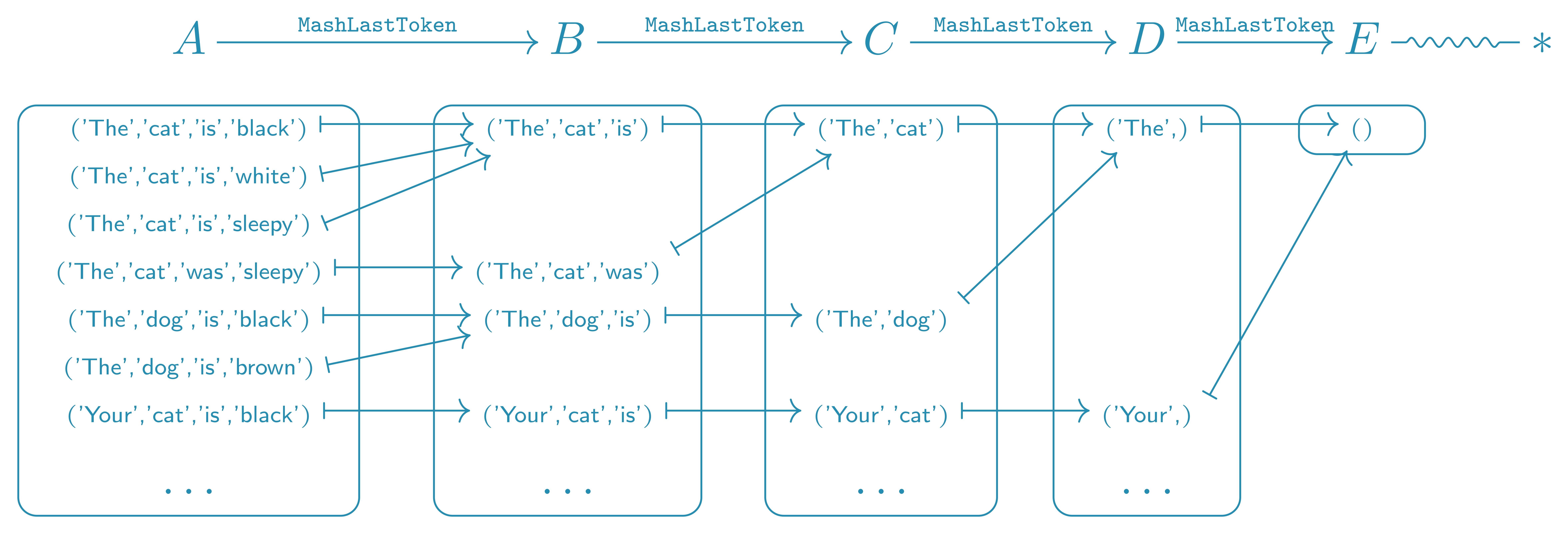

This is the strategy used in autoregressive language models.
flowchart LR
subgraph A
a0["('The', 'cat', 'is', 'black')"]
a1["('The', 'cat', 'is', 'white')"]
a2["('The', 'cat', 'is', 'sleepy')"]
a3["('The', 'cat', 'was', 'sleepy')"]
a4["('The', 'dog', 'is', 'black')"]
a5["('The', 'dog', 'is', 'brown')"]
a6["('Your', 'cat', 'is', 'black')"]
a7["..."]
end
subgraph B
b0["('The', 'cat', 'is')"]
b1["('The', 'cat', 'was')"]
b2["('The', 'dog', 'is')"]
b3["('Your', 'cat', 'is')"]
b4["..."]
end
subgraph C
c0["('The', 'cat')"]
c1["('The', 'dog')"]
c2["('Your', 'cat')"]
c3["..."]
end
subgraph D
d0["('The')"]
d1["('Your')"]
d2["..."]
end
subgraph E
e0["()"]
end
a0 --> b0 --> c0 --> d0 --> e0
a1 --> b0
a2 --> b0
a3 --> b1 --> c0
a4 --> b2 --> c1 --> d0
a5 --> b2
a6 --> b3 --> c2 --> d1 --> e0
LeftMarginHack:::phantom ~~~ a0
e0 ~~~ RightMarginHack:::phantom
classDef phantom display: none;
Here the ellipses represent additional messages whose arrows are not explicitly shown. The message is iteratively fed through the MashLastToken communication channel, which mashes together all the messages that have the same prefix up to the last token. Because of the setting’s symmetric structure, we can use the same neural network at each position to predict the probability distribution for what the next should be: all positions can contribute to train the same GuessNextToken. At inference, we start from the singleton (the empty sequence), then iteratively apply GuessNextToken. Et voilà! An autoregressive language model!
Notice how each time we destroy some information, we’re carving out a chunk of the overall task to be learned. Here divide-and-conquer amounted to “learn to generate one token at a time”. Such a very structured, regular way to destroy the message, is typical of many non-diffusion machine learning techniques. One of my claims in this blogpost is that diffusion models can destroy information more “organically”, possibly reducing the human-designer bias hand-waved at by Sutton.
flowchart LR
subgraph A
a0["('The', 'cat', 'is', 'black')"]
a1["('The', 'cat', 'is', 'white')"]
a2["('The', 'cat', 'is', 'sleepy')"]
a3["('The', 'cat', 'was', 'sleepy')"]
a4["('The', 'dog', 'is', 'black')"]
a5["('The', 'dog', 'is', 'brown')"]
a6["('Your', 'cat', 'is', 'black')"]
a7["..."]
end
subgraph B
b03["('The', 'cat', 'is', '[MASK]')"]
b33["('The', 'cat', 'was', '[MASK]')"]
b43["('The', 'dog', 'is', '[MASK]')"]
b63["('Your', 'cat', 'is', '[MASK]')"]
b02["('The', 'cat', '[MASK]', 'black')"]
b12["('The', 'cat', '[MASK]', 'white')"]
b22["('The', 'cat', '[MASK]', 'sleepy')"]
b42["('The', 'dog', '[MASK]', 'black')"]
b52["('The', 'dog', '[MASK]', 'brown')"]
b62["('Your', 'cat', '[MASK]', 'black')"]
b01["('The', '[MASK]', 'is', 'black')"]
b11["('The', '[MASK]', 'is', 'white')"]
b21["('The', '[MASK]', 'is', 'sleepy')"]
b31["('The', '[MASK]', 'was', 'sleepy')"]
b51["('The', '[MASK]', 'is', 'brown')"]
b61["('Your', '[MASK]', 'is', 'black')"]
b00["('[MASK]', 'cat', 'is', 'black')"]
b10["('[MASK]', 'cat', 'is', 'white')"]
b20["('[MASK]', 'cat', 'is', 'sleepy')"]
b30["('[MASK]', 'cat', 'was', 'sleepy')"]
b40["('[MASK]', 'dog', 'is', 'black')"]
b50["('[MASK]', 'dog', 'is', 'brown')"]
b7["..."]
end
a0 --> b03
a1 --> b03
a2 --> b03
a3 --> b33
a4 --> b43
a5 --> b43
a6 --> b63
a0 --> b02
a1 --> b12
a2 --> b22
a3 --> b22
a4 --> b42
a5 --> b52
a6 --> b62
a0 --> b01
a1 --> b11
a2 --> b21
a3 --> b31
a4 --> b01
a5 --> b51
a6 --> b61
a0 --> b00
a1 --> b10
a2 --> b20
a3 --> b30
a4 --> b40
a5 --> b50
a6 --> b00
subgraph C
c023["('The', 'cat', '[MASK]', '[MASK]')"]
c423["('The', 'dog', '[MASK]', '[MASK]')"]
c623["('Your', 'cat', '[MASK]', '[MASK]')"]
c013["('The', '[MASK]', 'is', '[MASK]')"]
c313["('The', '[MASK]', 'was', '[MASK]')"]
c613["('Your', '[MASK]', 'is', '[MASK]')"]
c003["('[MASK]', 'cat', 'is', '[MASK]')"]
c303["('[MASK]', 'cat', 'was', '[MASK]')"]
c403["('[MASK]', 'dog', 'is', '[MASK]')"]
c023["('The', 'cat', '[MASK]', '[MASK]')"]
c423["('The', 'dog', '[MASK]', '[MASK]')"]
c623["('Your', 'cat', '[MASK]', '[MASK]')"]
c012["('The', '[MASK]', '[MASK]', 'black')"]
c112["('The', '[MASK]', '[MASK]', 'white')"]
c212["('The', '[MASK]', '[MASK]', 'sleepy')"]
c512["('The', '[MASK]', '[MASK]', 'brown')"]
c612["('Your', '[MASK]', '[MASK]', 'black')"]
c002["('[MASK]', 'cat', '[MASK]', 'black')"]
c102["('[MASK]', 'cat', '[MASK]', 'white')"]
c202["('[MASK]', 'cat', '[MASK]', 'sleepy')"]
c402["('[MASK]', 'dog', '[MASK]', 'black')"]
c502["('[MASK]', 'dog', '[MASK]', 'brown')"]
c001["('[MASK]', '[MASK]', 'is', 'black')"]
c101["('[MASK]', '[MASK]', 'is', 'white')"]
c201["('[MASK]', '[MASK]', 'is', 'sleepy')"]
c301["('[MASK]', '[MASK]', 'was', 'sleepy')"]
c501["('[MASK]', '[MASK]', 'is', 'brown')"]
c7["..."]
end
B ==> C
subgraph D
d0012["('[MASK]', '[MASK]', '[MASK]', 'black')"]
d1012["('[MASK]', '[MASK]', '[MASK]', 'white')"]
d2012["('[MASK]', '[MASK]', '[MASK]', 'sleepy')"]
d5012["('[MASK]', '[MASK]', '[MASK]', 'brown')"]
d0013["('[MASK]', '[MASK]', 'is', '[MASK]')"]
d3013["('[MASK]', '[MASK]', 'was', '[MASK]')"]
d0023["('[MASK]', 'cat', '[MASK]', '[MASK]')"]
d4023["('[MASK]', 'dog', '[MASK]', '[MASK]')"]
d0123["('The', '[MASK]', '[MASK]', '[MASK]')"]
d6123["('Your', '[MASK]', '[MASK]', '[MASK]')"]
d7["..."]
end
c023 --> d0023
c423 --> d0023
c013 --> d0013
c313 --> d3013
c613 --> d0013
c003 --> d0013
c303 --> d3013
c403 --> d0013
c623 --> d0023
c012 --> d0012
c112 --> d1012
c212 --> d2012
c512 --> d5012
c612 --> d0012
c002 --> d0012
c102 --> d1012
c202 --> d2012
c402 --> d0012
c502 --> d5012
c001 --> d0012
c101 --> d1012
c201 --> d2012
c301 --> d2012
c501 --> d5012
c023 --> d0123
c423 --> d0123
c013 --> d0123
c313 --> d0123
c613 --> d6123
c003 --> d0023
c303 --> d0023
c403 --> d4023
c623 --> d6123
c012 --> d0123
c112 --> d0123
c212 --> d0123
c512 --> d0123
c612 --> d6123
c002 --> d0023
c102 --> d0023
c202 --> d0023
c402 --> d0023
c502 --> d0023
c001 --> d0013
c101 --> d0013
c201 --> d0013
c301 --> d3013
c501 --> d0013
subgraph E
e0["('[MASK]', '[MASK]', '[MASK]', '[MASK]')"]
end
d0012 --> e0
d1012 --> e0
d2012 --> e0
d5012 --> e0
d0013 --> e0
d3013 --> e0
d0023 --> e0
d4023 --> e0
d0123 --> e0
d6123 --> e0
LeftMarginHack:::phantom ~~~ a0
e0 ~~~ RightMarginHack:::phantom
classDef phantom display: none;
(There should be 3 arrows leaving each of Bob’s messages toward Carol, please pardon me for eschewing them.)
While MashLastToken was strictly destroying information, here MashOneRandomUnmaskedToken both generates information (which token is to be masked) and destroys information (mash together all messages that would be the same if it were not for the randomly-selected unmasked token). However, the newly generated information (masking order) is also destroyed by the process. In the end, we still get a singleton: all information is eventually destroyed.
The point I’m trying to make here is that MashOneRandomUnmaskedToken is a richer approach to “divide and conquer” than MashLastToken was. It is more “organic” in a similar sense that mixing milk in coffee is “organic”: it’s a mess, a rich mess. We can train a model to GuessOneRandomMaskToken on that mess, and yes, I could excuse it to train slower than GuessNextToken, because GuessNextToken is a subset of what GuessOneRandomMaskToken is learning. Let me make it explicit.
flowchart LR
subgraph A
a0["('The', 'cat', 'is', 'black')"]
a1["('The', 'cat', 'is', 'white')"]
a2["('The', 'cat', 'is', 'sleepy')"]
a3["('The', 'cat', 'was', 'sleepy')"]
a4["('The', 'dog', 'is', 'black')"]
a5["('The', 'dog', 'is', 'brown')"]
a6["('Your', 'cat', 'is', 'black')"]
a7["..."]
end
subgraph B
b0["('The', 'cat', 'is', '[MASK]')"]
b1["('The', 'cat', 'was', '[MASK]')"]
b2["('The', 'dog', 'is', '[MASK]')"]
b3["('Your', 'cat', 'is', '[MASK]')"]
b4["..."]
end
subgraph C
c0["('The', 'cat', '[MASK]', '[MASK]')"]
c1["('The', 'dog', '[MASK]', '[MASK]')"]
c2["('Your', 'cat', '[MASK]', '[MASK]')"]
c3["..."]
end
subgraph D
d0["('The', '[MASK]', '[MASK]', '[MASK]')"]
d1["('Your', '[MASK]', '[MASK]', '[MASK]')"]
d2["..."]
end
subgraph E
e0["('[MASK]', '[MASK]', '[MASK]', '[MASK]')"]
end
a0 --> b0 --> c0 --> d0 --> e0
a1 --> b0
a2 --> b0
a3 --> b1 --> c0
a4 --> b2 --> c1 --> d0
a5 --> b2
a6 --> b3 --> c2 --> d1 --> e0
LeftMarginHack:::phantom ~~~ a0
e0 ~~~ RightMarginHack:::phantom
classDef phantom display: none;
We could train a model to GuessOneRandomMaskToken then, at inference, use the learned weight to perform the GuessNextToken task instead. In the scenario where we’re data-starved, but we can train for as long as we wish to, with a model as big as it needs to,GuessNextToken, which model would you put your money on: the one trained solely on this specific GuessNextToken task, or the one that saw the worst GuessOneRandomMaskToken had to offer?
In the previous section, we saw that both autoregressive language models and mask diffusion language models learn to mimic Alice’s message distribution by iteratively Mashing them toward a singleton, reaching a state with no information about anything, thus no information about Alice. Here we consider the other leading approach to destroying Alice’s message: drowning it into irrelevant information.

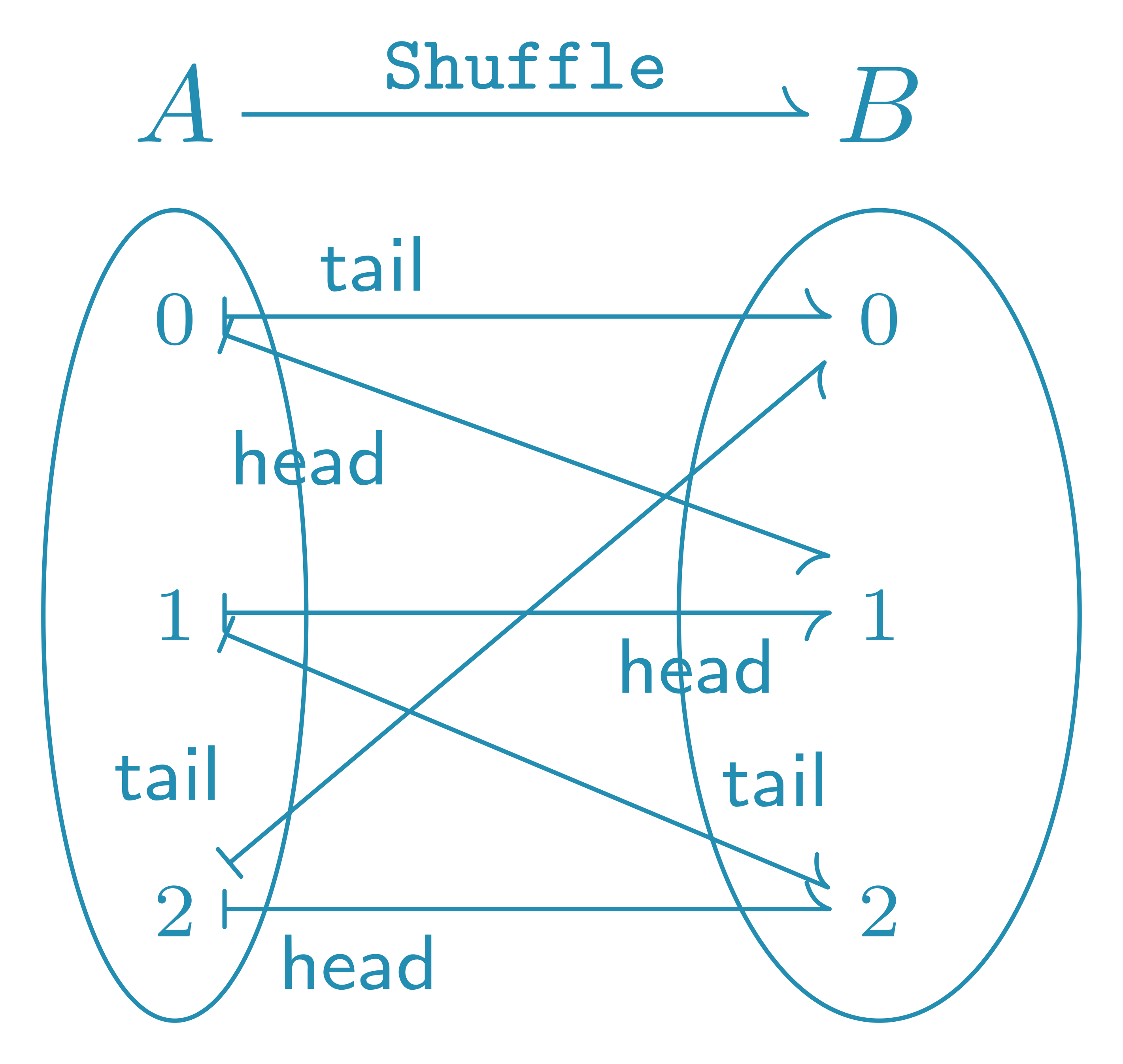

This mechanism, which I call Shuffle, may be more aligned with the historic/physical meaning of the word “diffusion”.Mash may generate information (e.g., masking order) but will eventually destroy everything to a singleton, Shuffle must generate new information to be folded into Alice’s message, drowning it in the noise.
flowchart LR
subgraph A
a0[0]
a1[1]
a2[2]
end
subgraph B
b0[0]
b1[1]
b2[2]
end
a0 --tail---> b0
a2 --tail---> b0
a0 --head---> b1
A ==Shuffle===> B
a1 --head---> b1
a2 --head---> b2
a1 --tail---> b2
LeftMarginHack:::phantom ~~~ a0
b0 ~~~ RightMarginHack:::phantom
classDef phantom display: none;
If Bob has a good understanding of the Shuffle channel, he can model the situation as
When he observes $B=0$, he knows that Alice said either $0$ or $2$, but he’s not sure which: information was destroyed, and he may learn to to generate $A’$, seeking to capture Alice’s marginal probability distribution $\textup{P}(A)$.
But notice that (irrelevant) information was also created: when $B=0$, a Bob that understands the channel knows with certainty that the coin flip was “tail” (whereas this coin information was completely unknown to Alice). In my view, Shuffle can destroy information about the original message because it generates irrelevant information and has to fold the outcome in as many possible messages than there were before. The message $A$ can take 3 values, the coin can take two values, the product of the coin and the message can take 6 values, and somehow this has to be crammed into the 3 possible values for $B$. Something has to give; information about Alice is destroyed.
Next Bob can message Carol through the same Shuffle channel, and the same procedure can continue up to Zalgo.
Now, technically, the probability distribution $\textup{P}(Z)$ still depends on $\textup{P}(A)$, but what does that mean in practice? Well, it can be shown that
\[0.33333331 < P(Z=z) < 0.33333335 \quad \forall z \in \{0,1,2\} ,\]irrespective of Alice’s probability distribution. The crux of the Shuffle learning strategy here amounts to approximating Zalgo as a uniform distribution:
So, whereas Mash eventually takes us to a singleton, Shuffle takes us to a known distribution, simple to sample. Except for this detail, inference for Shuffle proceeds the same way as Mash: we sample $Z’$ from the known distribution, then apply the respective learned Guess down the alphabet until we get $A’$.
Like the previous section adapted the spirit of Mash to MashOneRandomUnmaskedToken, we can adapt Shuffle to obtain ShuffleOneRandomToken: a random token position gets substituted by a token selected uniformly at random from the tokenizer’s vocabulary. This is basically the “Uniform” noising process used in SEDD.
For the rest of this section, let’s quickly consider what “shuffling” means in continuous space. Suppose Alice’s message is a $w \times h \times 3$ tensor of real numbers in the $[-1,1]$ interval representing an RGB picture of $w$ pixels wide by $h$ pixels high. We may define the GaussianShuffle(δ) communication channel such that it adds independent Gaussian noise (with mean $0$ and variance $0 < \delta \ll 1$) to each entry of this tensor.
This channel generates (irrelevant) information: for a given message from Alice, there are many possible options for what Bob may receive; arrows branching out means that information is generated. But the channel also destroys information: there are many messages that Alice could have said that may explain a given message received by Bob; arrows converging in mean that information is destroyed. As for Shuffle, GaussianShuffle(δ) destroys information about Alice’s message by generating irrelevant information and folding it into limited space.
The impact of $n$ repeated independent applications of GaussianShuffle(δ) is a single “bigger” GaussianShuffle(n*δ).GaussianShuffle(n*δ) on any image is basically an $w \times h \times 3$ Gaussian with mean zero and variance $n\delta$, i.e., no dependency worth mentioning on the actual image. In essence, this amounts to the “Variance Exploding” process from Song et al.
In our quest to divide-and-conquer the learning of Alice’s distribution, we have seen two different strategies to destroy all the information in her message: Mash everything into a singleton, and Shuffle long enough to get a maximum-entropy distribution (e.g., uniform or Gaussian).

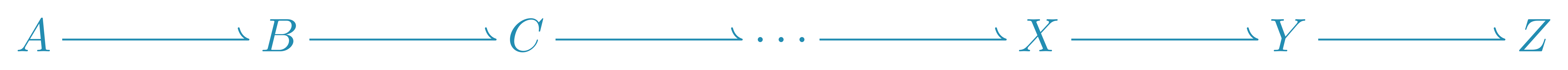

Both these strategies are Markovian: each person’s message has all the information required to get the probability distribution for the next person’s message. Stated differently, the “spine” of all my diagrams looked like this.
flowchart LR
subgraph A
a0:::phantom
end
subgraph B
b0:::phantom
end
subgraph C
c0:::phantom
end
subgraph D["..."]
d0:::phantom
end
subgraph Z
z0:::phantom
end
A ==> B ==> C ==> D ==> Z
LeftMarginHack:::phantom ~~~ a0
z0 ~~~ RightMarginHack:::phantom
classDef phantom display: none;
But this is not the only possibility, and many diffusion models have a non-Markovian approach to destruction and/or generation. For example, although DDPM’s
given appropriate $1 = \alpha_A \ge \alpha_B \ge \alpha_C \ge \cdots \ge \alpha_Z = 0$. Below is a diagram showing the Markovian approach on the top-right and the non-Markovian one on the bottom-left.
flowchart LR
subgraph A
a0:::phantom
end
subgraph B
b0:::phantom
end
subgraph C
c0:::phantom
end
subgraph D["..."]
d0:::phantom
end
subgraph Z
z0:::phantom
end
subgraph Ap["A'"]
ap0:::phantom
end
subgraph Bp["B'"]
bp0:::phantom
end
subgraph Cp["C'"]
cp0:::phantom
end
subgraph Zp["Z'"]
zp0:::phantom
end
subgraph ApxZp["A' × Z'"]
azp0:::phantom
end
A ==> B ==> C ==> D ==> Z
ApxZp ==> Ap -.- A
ApxZp ==> Bp -.- B
ApxZp ==> Cp -.- C
ApxZp ==> Zp -.- Z
LeftMarginHack:::phantom ~~~ a0
z0 ~~~ RightMarginHack:::phantom
classDef phantom display: none;
Here I used $A’ \times Z’$ to denote someone that has simultaneous access to both $A’$ and $Z’$ messages, and is thus able to use the previous equation to obtain $B’$, $C’$, etc.
But once you’ve used $A’ \times Z’$ to calculate, say, $B’$, you could just not discard $Z’$, and obtain $B’ \times Z’$. The same holds up to $Y’ \times Z’$ and, with a little more algebra, we can actually go back to $A’ \times Z’$ (ignoring finite-precision errors). I represent such information-preserving back-and-forth conversions using bidirectional arrows.
flowchart LR
subgraph ApxZp["A' × Z'"]
apzp0:::phantom
end
subgraph BpxZp["B' × Z'"]
bpzp0:::phantom
end
subgraph CpxZp["C' × Z'"]
cpzp0:::phantom
end
subgraph DpxZp["..."]
dpzp0:::phantom
end
subgraph YpxZp["Y' × Z'"]
ypzp0:::phantom
end
subgraph Ap["A'"]
ap0:::phantom
end
subgraph Bp["B'"]
bp0:::phantom
end
subgraph Cp["C'"]
cp0:::phantom
end
subgraph Yp["Y'"]
yp0:::phantom
end
subgraph Zp["Z'"]
zp0:::phantom
end
subgraph BpxZpp["B' × Z''"]
bpzpp0:::phantom
end
subgraph CpxZppp["C' × Z'''"]
cpzppp0:::phantom
end
subgraph YpxZpppp["Y' × Z'''''"]
ypzpppp0:::phantom
end
subgraph App["A''"]
app0:::phantom
end
subgraph A
a0:::phantom
end
subgraph B
b0:::phantom
end
subgraph C
c0:::phantom
end
subgraph D["..."]
d0:::phantom
end
subgraph Y
y0:::phantom
end
subgraph Z
z0:::phantom
end
Ap ==> ApxZp <==> BpxZp <==> CpxZp <==> DpxZp <==> YpxZp ==> Zp
BpxZp ==> Bp ==> BpxZpp -."B'".- BpxZp
CpxZp ==> Cp ==> CpxZppp -."C'".- CpxZp
YpxZp ==> Yp ==> YpxZpppp -."Y'".- YpxZp
A ==> B ==> C ==> D ==> Y ==> Z
ApxZp ==> App -.- A
Ap -.- A
Bp -.- B
Cp -.- C
Yp -.- Y
Zp -.- Z
LeftMarginHack:::phantom ~~~ ap0
z0 ~~~ RightMarginHack:::phantom
classDef phantom display: none;
Projecting $B’ \times Z’$ to $B’$ destroys information about $Z’$ and, without it, we cannot get back to $A’$: this projection destroys information about $A’$. We may thus train a model to use $B’$ to predict the “missing noise” $Z’’$, with the intent to obtain a $B’ \times Z’’$ whose distribution matches $B’ \times Z’$. Equation (14) from DDPM
There exist many types of probabilistic graphical models. Some are meant to be general-purpose, others are more specialized. Most are meant for empirical/scientific use: we translate our intuition of what are the non-impossible dependencies between stochastic variables, then we may analyze empirical observations under those assumptions.
This blogpost introduces a new kind of probabilistic graphical model, which I propose to call generative commutative diagrams. Unlike many other kinds of graphical models, those used here are meant for prescription/engineering use. They read like code: an arrow is like a procedure you can call to transform the origin node into the target node.
As the name “generative commutative diagrams” implies, they have been inspired by the commutative diagrams used by mathematicians, especially category theorists. This blogpost is not about category theory, you do not need to know nor care about category theory to read it, and I am myself definitely not an expert on category theory.
Most of the arrows used in this blogpost do not represent morphisms, but something less-than-a-morphism. I call them “harpoons” as I denote them $\rightharpoonup$ when I draw on a whiteboard or in $\texttt{tikz-cd}$, and I reserve $\rightarrow$ for proper morphisms. For this blogpost, I haven’t figured out how to coerce $\texttt{mermaid}$ into making different arrow heads: almost all the arrows show here should be $\rightharpoonup$. Project and Mash are among the rare examples that are proper morphisms, which I would usually draw as $\rightarrow$.

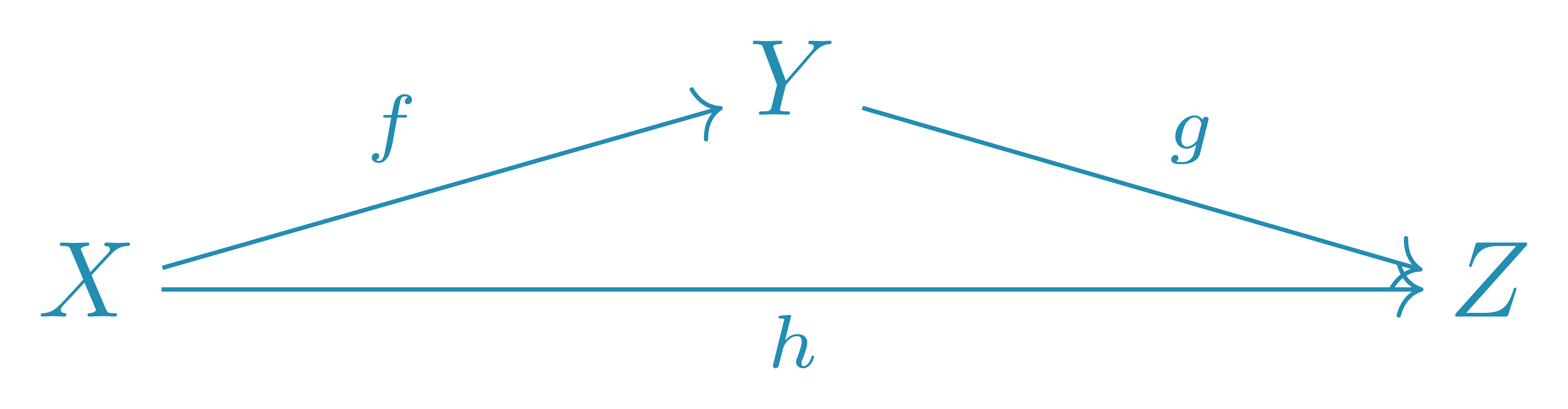

An introduction to category theory will often start with something like this.
flowchart LR
subgraph X
x0:::phantom
end
subgraph Y
y0:::phantom
end
subgraph Z
z0:::phantom
end
X ==f==> Y ==g==> Z
X ==h==> Z
LeftMarginHack:::phantom ~~~ x0
z0 ~~~ RightMarginHack:::phantom
classDef phantom display: none;

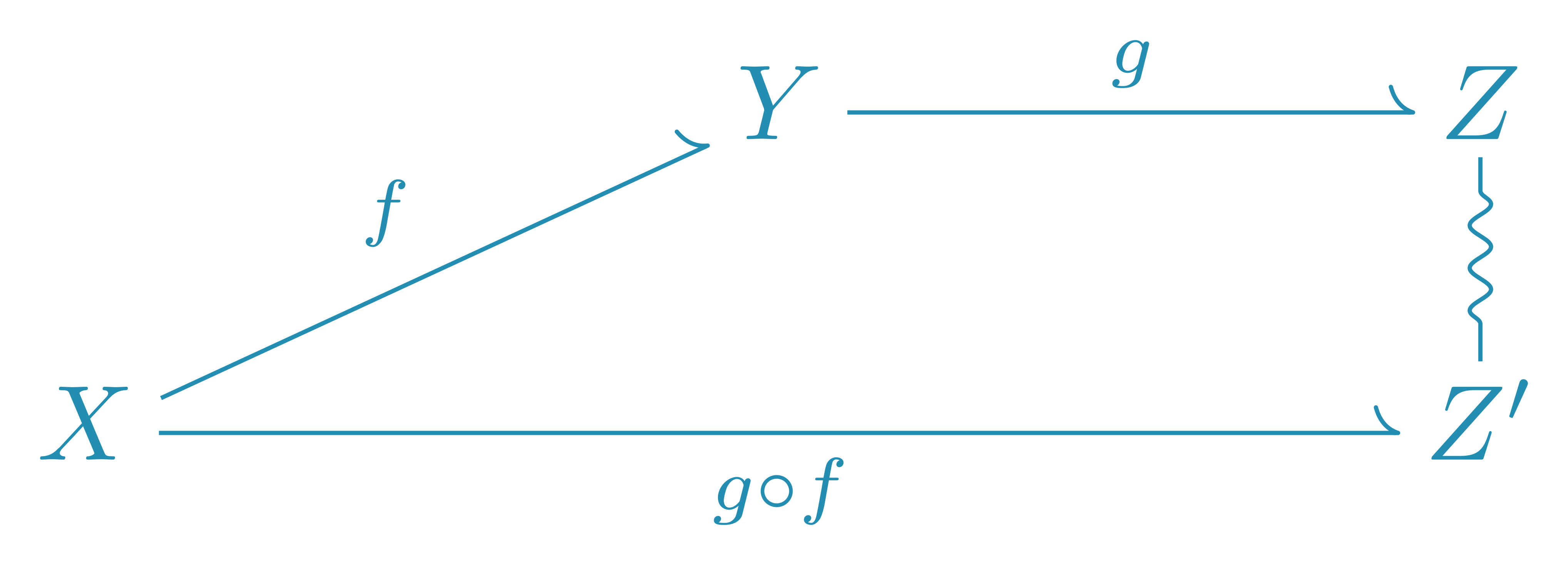

They will then mention “this diagram is commutative”, which means that $g(f(x)) = h(x)$ for all $x$. When we show the little arrows between the messages objects, this means that the paths going from $X$ to $Z$ by following $f$ then $g$ must all agree with the paths directly using $h$.

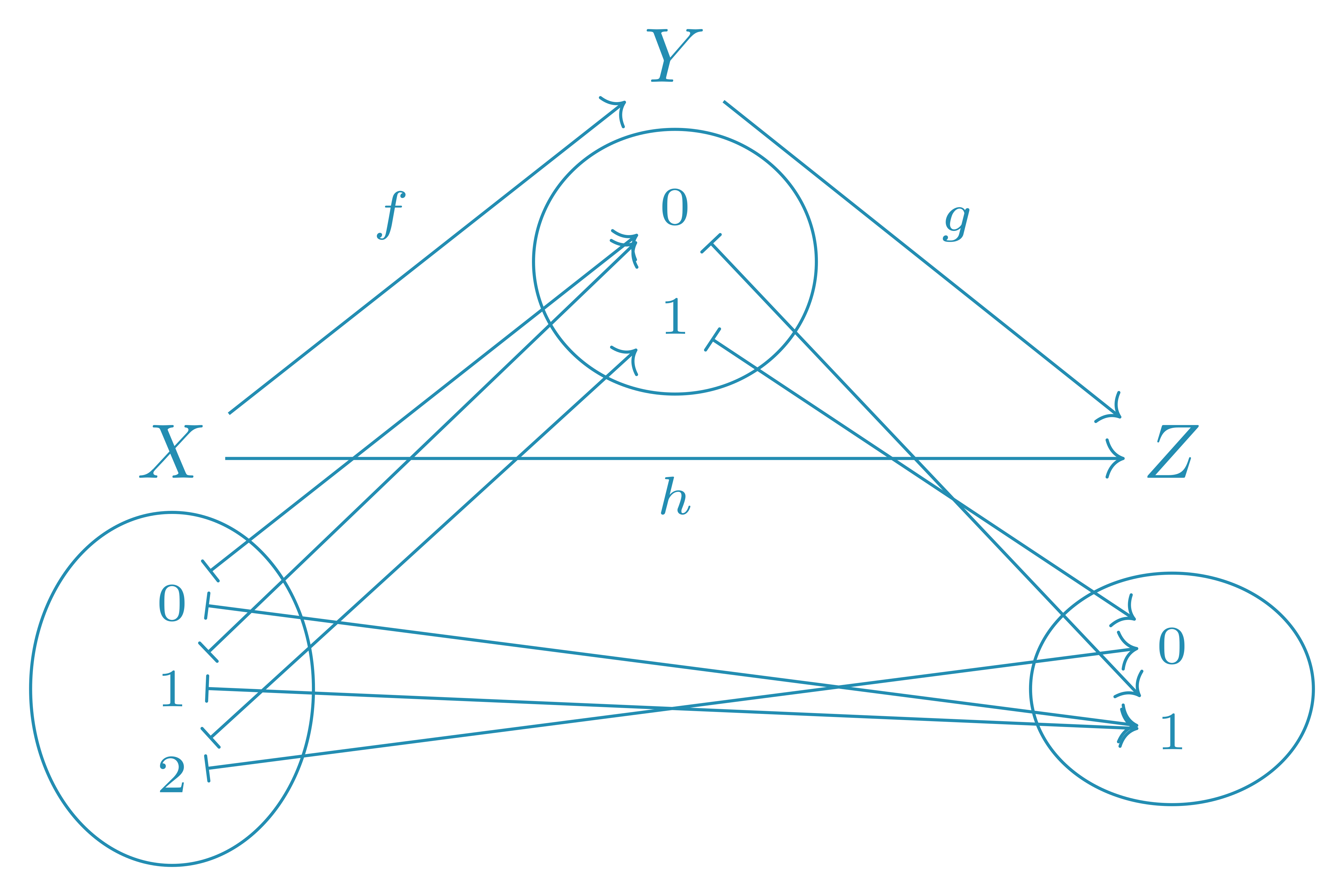

flowchart LR
subgraph X
x0["0"]
x1["1"]
x2["2"]
end
subgraph Y
y0["0"]
y1["1"]
end
subgraph Z
z0["0"]
z1["1"]
end
X ==f==> Y ==g==> Z
X ==h==> Z
x0 --> y0 --> z0
x1 --> z0
x1 --> y0
x2 --> z1
x2 --> y1 --> z1
x0 --> z0
LeftMarginHack:::phantom ~~~ x0
z0 ~~~ RightMarginHack:::phantom
classDef phantom display: none;
In a generative commutative diagrams, all the big arrows (harpoons and proper morphisms included) must also satisfy this requirement of commutativity.
Next, that introduction to category theory may give the following diagram.
flowchart LR
subgraph X
x0:::phantom
end
subgraph Y
y0:::phantom
end
subgraph Z
z0:::phantom
end
X ==f==> Y ==g==> Z
LeftMarginHack:::phantom ~~~ x0
z0 ~~~ RightMarginHack:::phantom
classDef phantom display: none;
They will then say that because $f$ and $g$ are morphisms, this picture is equivalent to the first one: we can always combine morphisms head-to-tail to obtain an implicit morphism, here $h = g \circ f$. This is not true for my harpoons. If either or both $f$ and $g$ are harpoons, the best you can get by chaining them is a way to sample the same probability distribution
flowchart LR
subgraph X
x0:::phantom
end
subgraph Y
y0:::phantom
end
subgraph Z
z0:::phantom
end
subgraph Zp["Z'"]
zp0:::phantom
end
X ==f==> Y ==g==> Z
X =="g ○ f"==> Zp -.- Z
LeftMarginHack:::phantom ~~~ x0
z0 ~~~ RightMarginHack:::phantom
classDef phantom display: none;
Morphisms cannot create information, only destroy or preserve it. Harpoons can create, preserve and destroy information.
Commutative diagrams that only contain morphisms may only tell “the destruction story”, the traditional direction of the data processing inequality. Harpoons allow you to also tell its dual, “the generation story”.
To be clear, we didn’t get any real new narrative power: you can tell “the generation story” solely in terms of destruction.
I have no idea if there is interesting maths to be done with such harpoons and, if yes, perhaps it has already been done under some name that evaded my search. However, as a specialized kind of graphical model, I’ve found them particularly useful when thinking about diffusion models and their weird edge cases.
Here are some more articles you might like to read next:
